AC-Adapter

Adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.

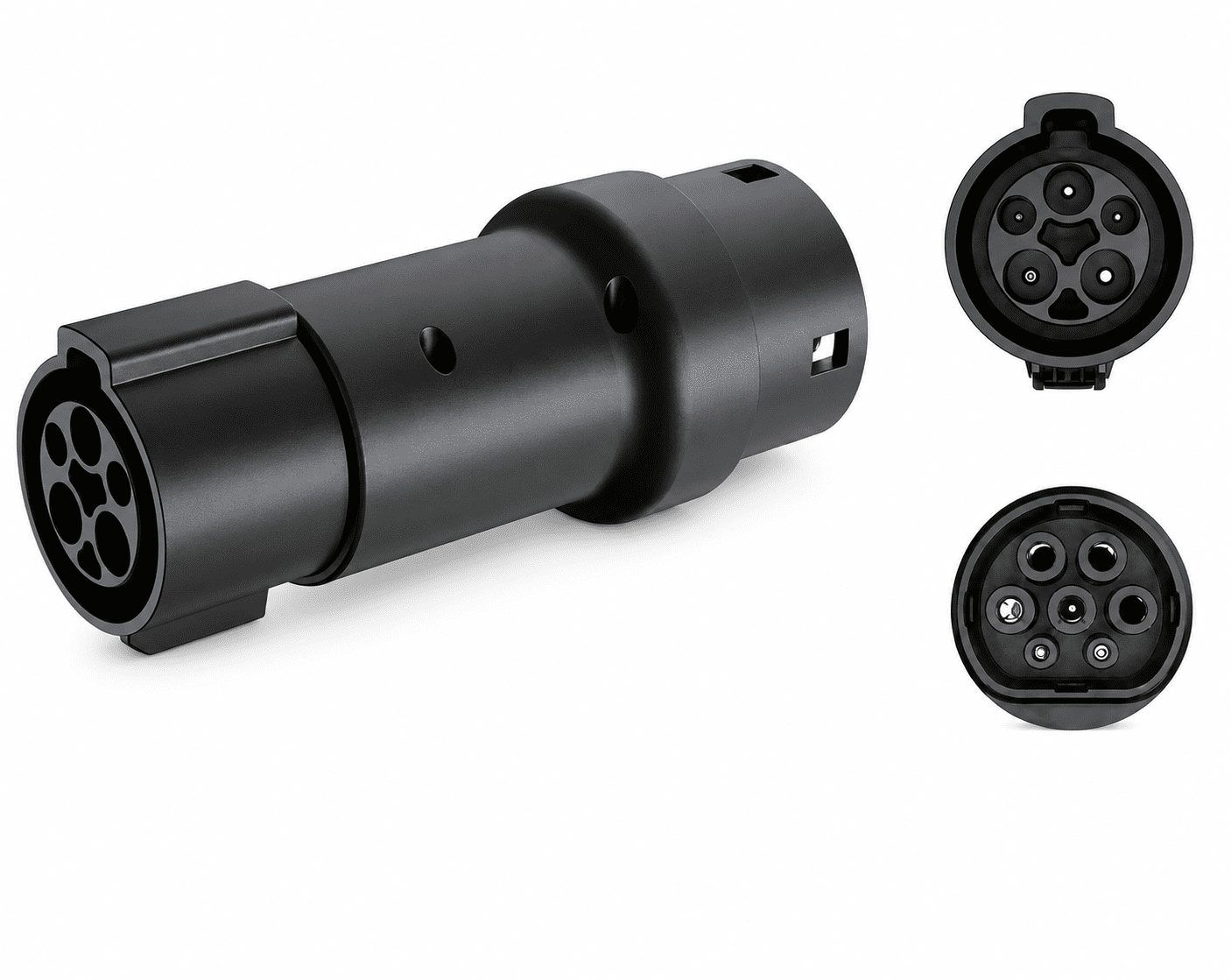

J1772-GB/T AC Adapter

Rated Current: 32A
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30°C~+50°C
Product Net Weight: 0.32kg
Product Size: 165.55*56mm

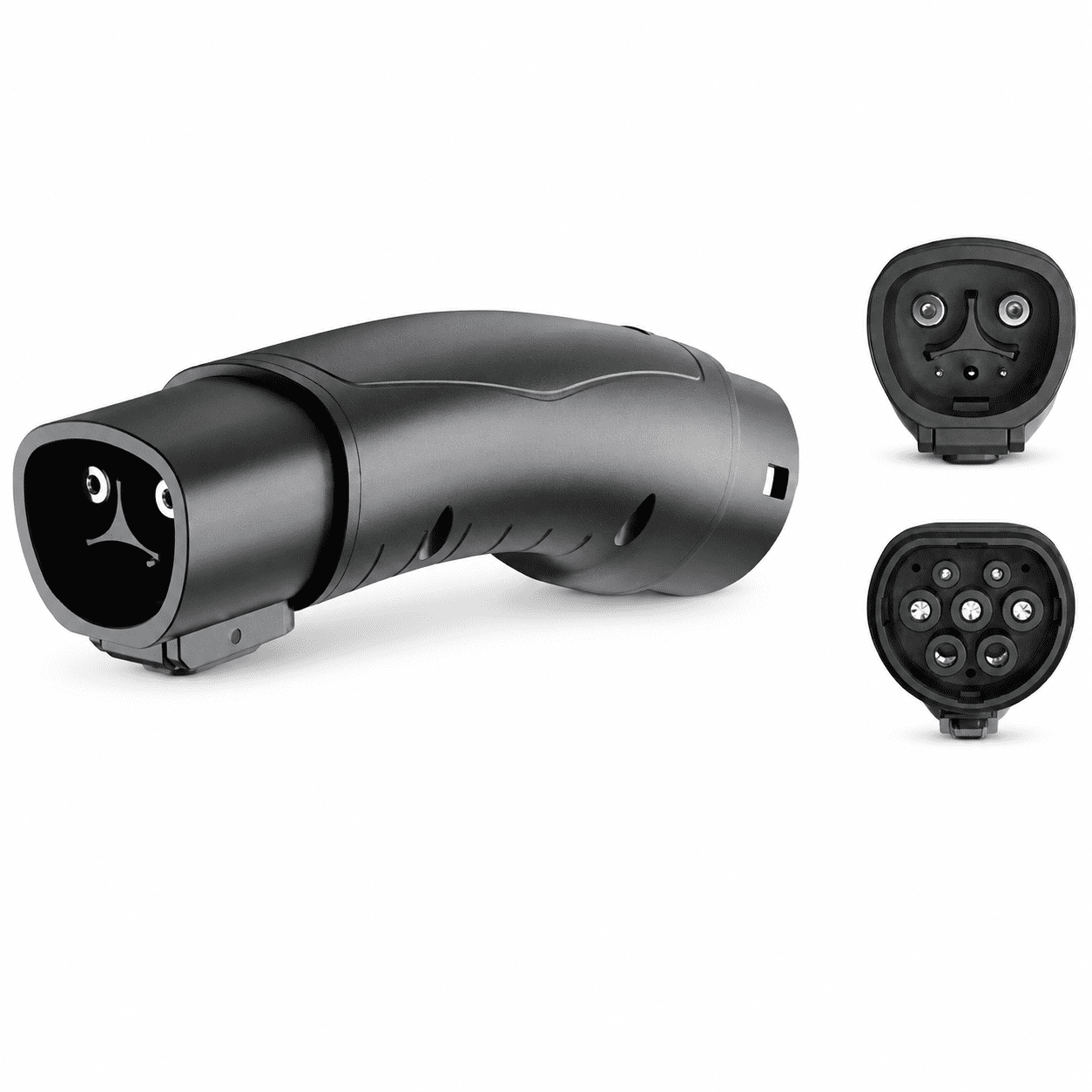

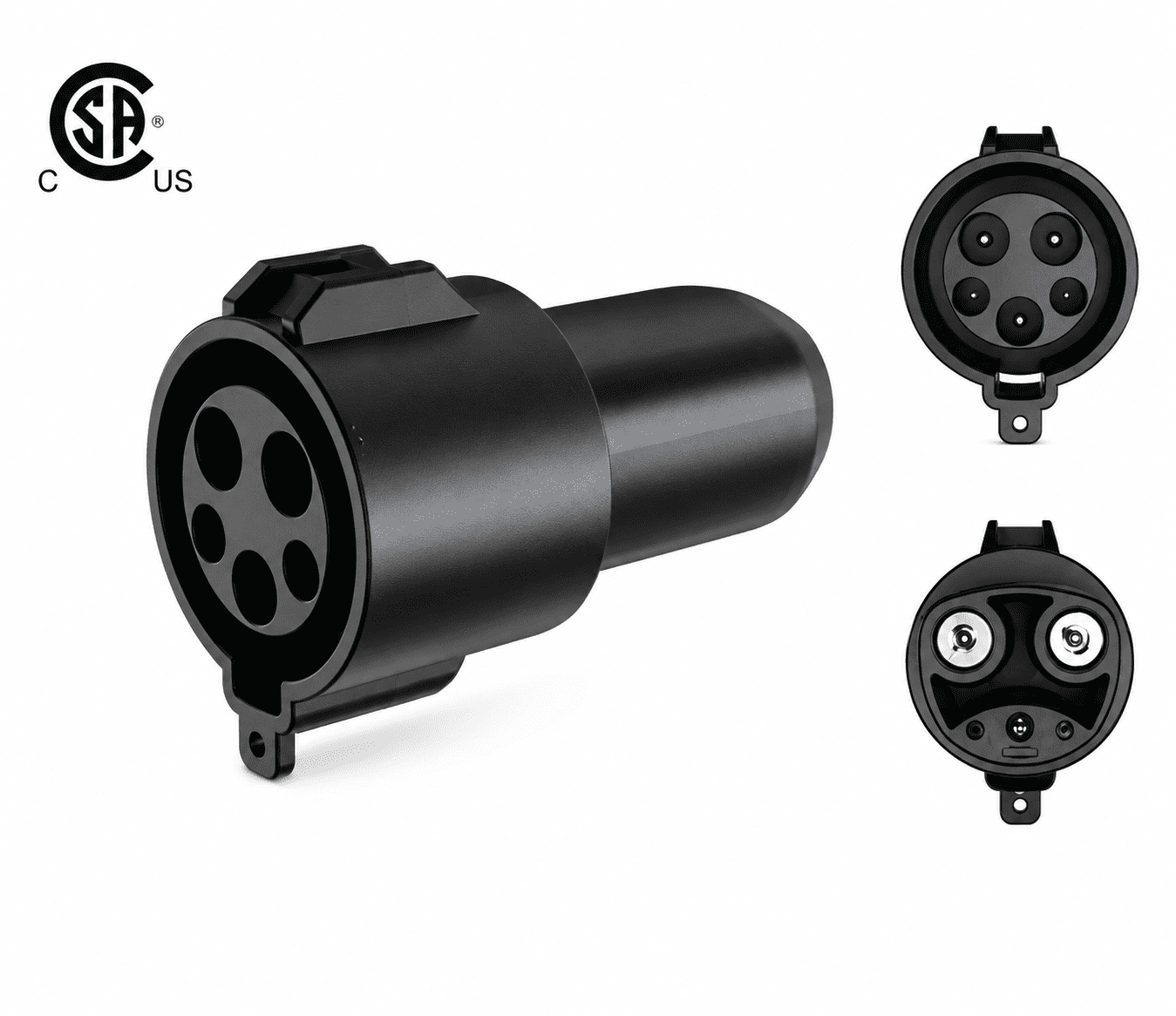

J1772-NACS AC Adapter

Rated Current: 60A/80A
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 0.19kg
Product Size: 87.4*50.96*60.76mm

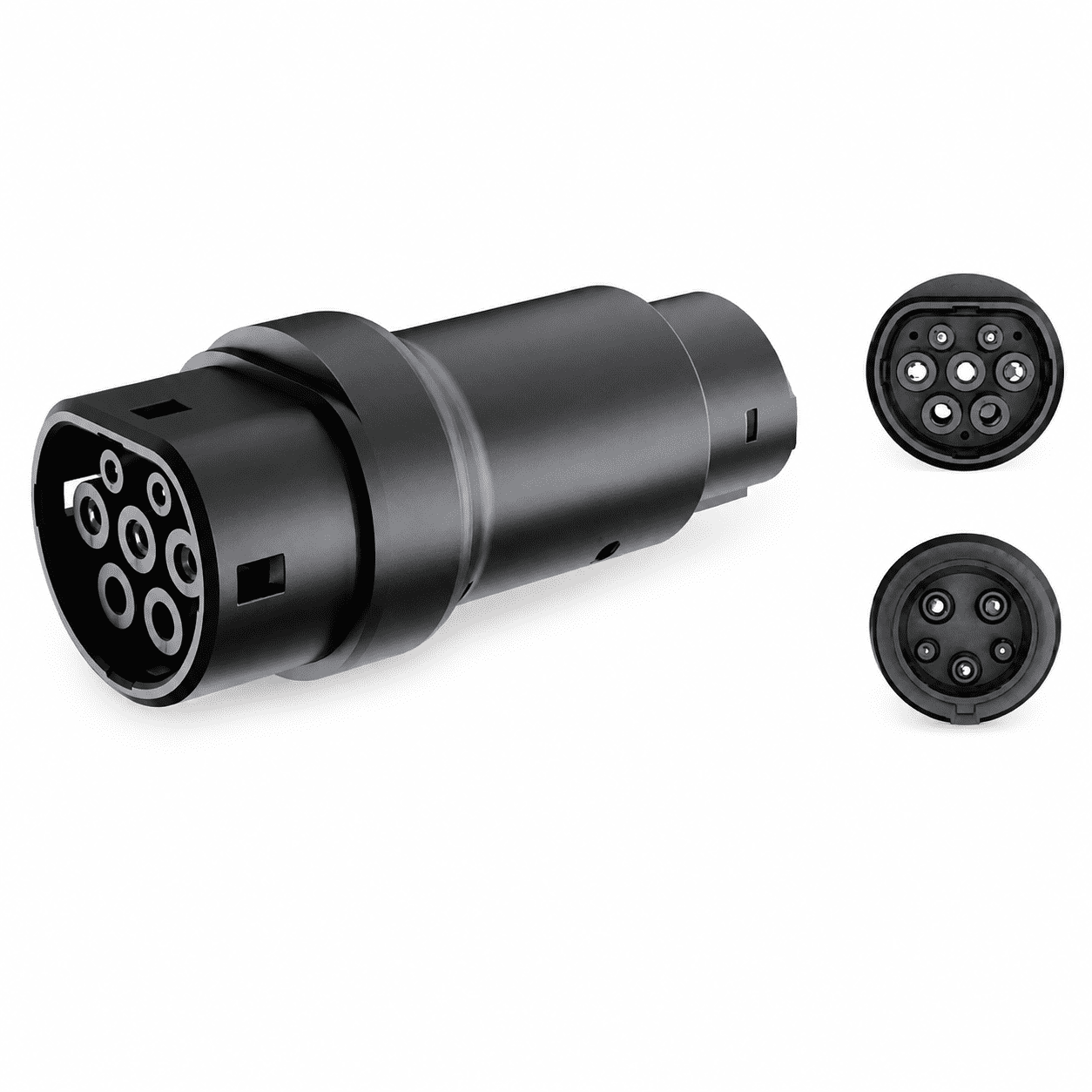

J1772-TYPE 2 AC Adapter

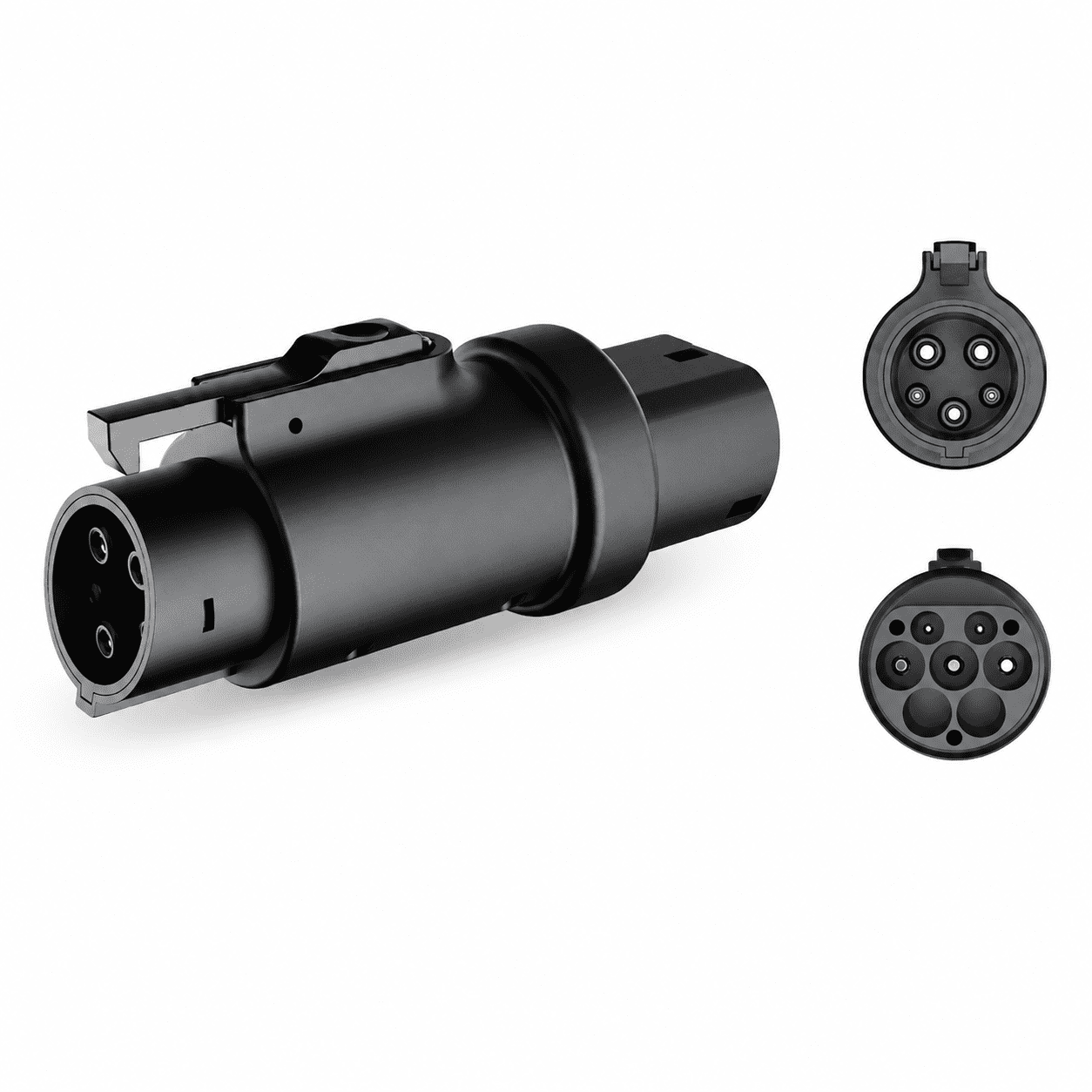

TYPE 2-J1772 AC Adapter

Rated Current: 32A Max
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 0.35kg
Product Dimensions:172.54*64.69*74.82mm

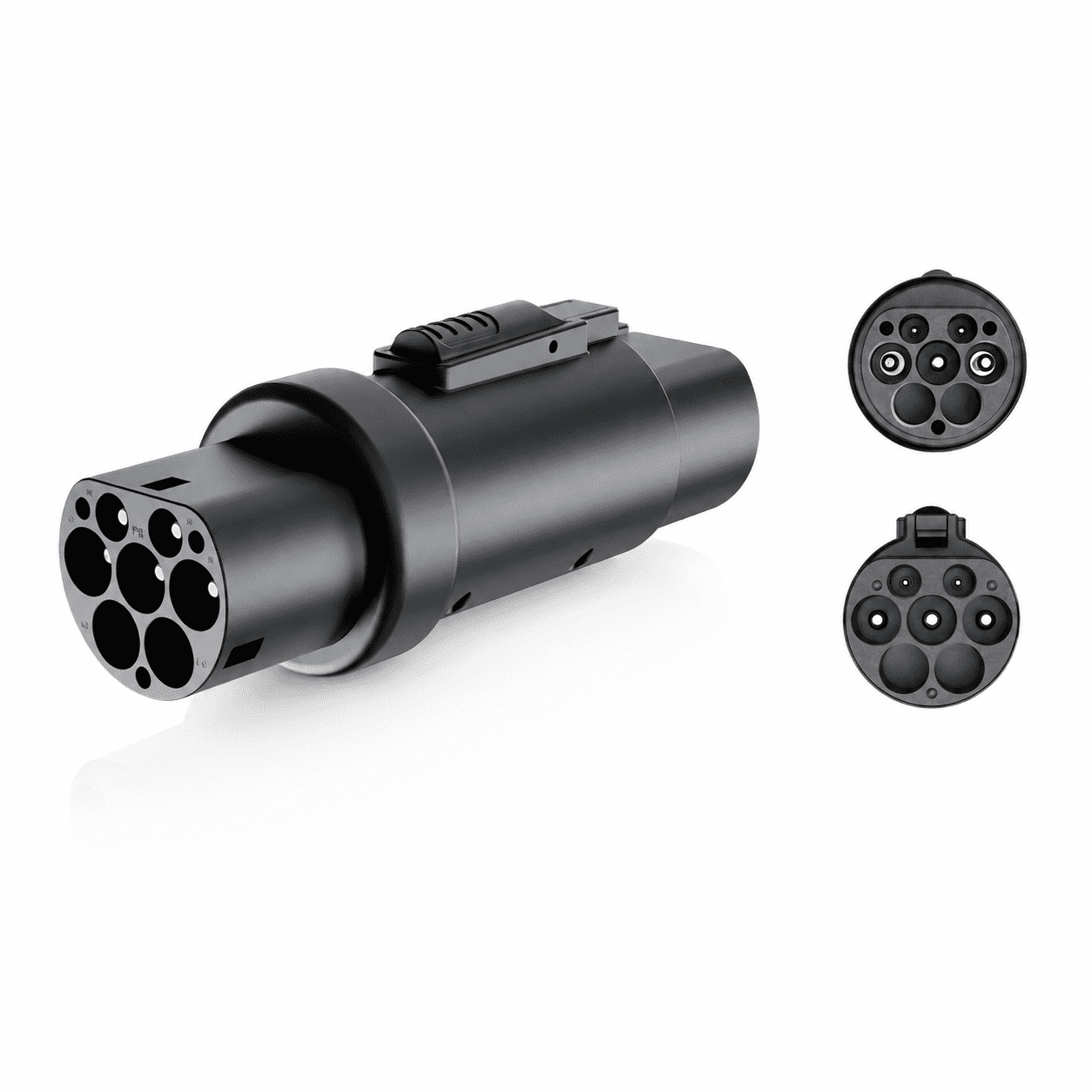

TYPE2-GB/T(1 PHASE) AC Adapter

Rated Current: 32A Max
Rated Voltage: 250V AC
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30°C~+50°C
Product Net Weight: 0.37kg
Product Size:178*64.69*64.69mm

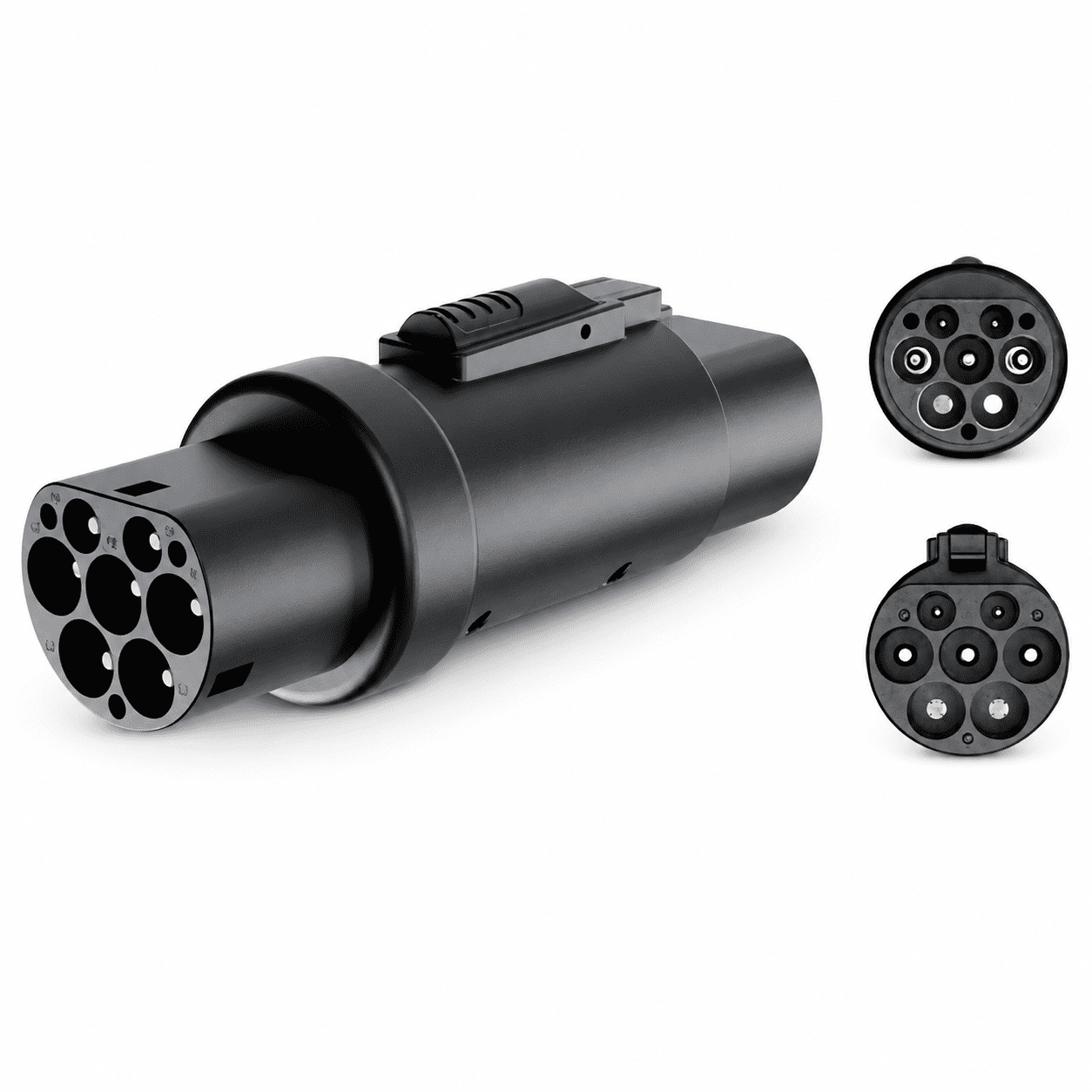

TYPE2-GB/T(three phase) AC Adapter

Rated Current: 32A Max
Rated Voltage: 380V AC
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 0.42kg
Product Size:178*64.69*64.69mm

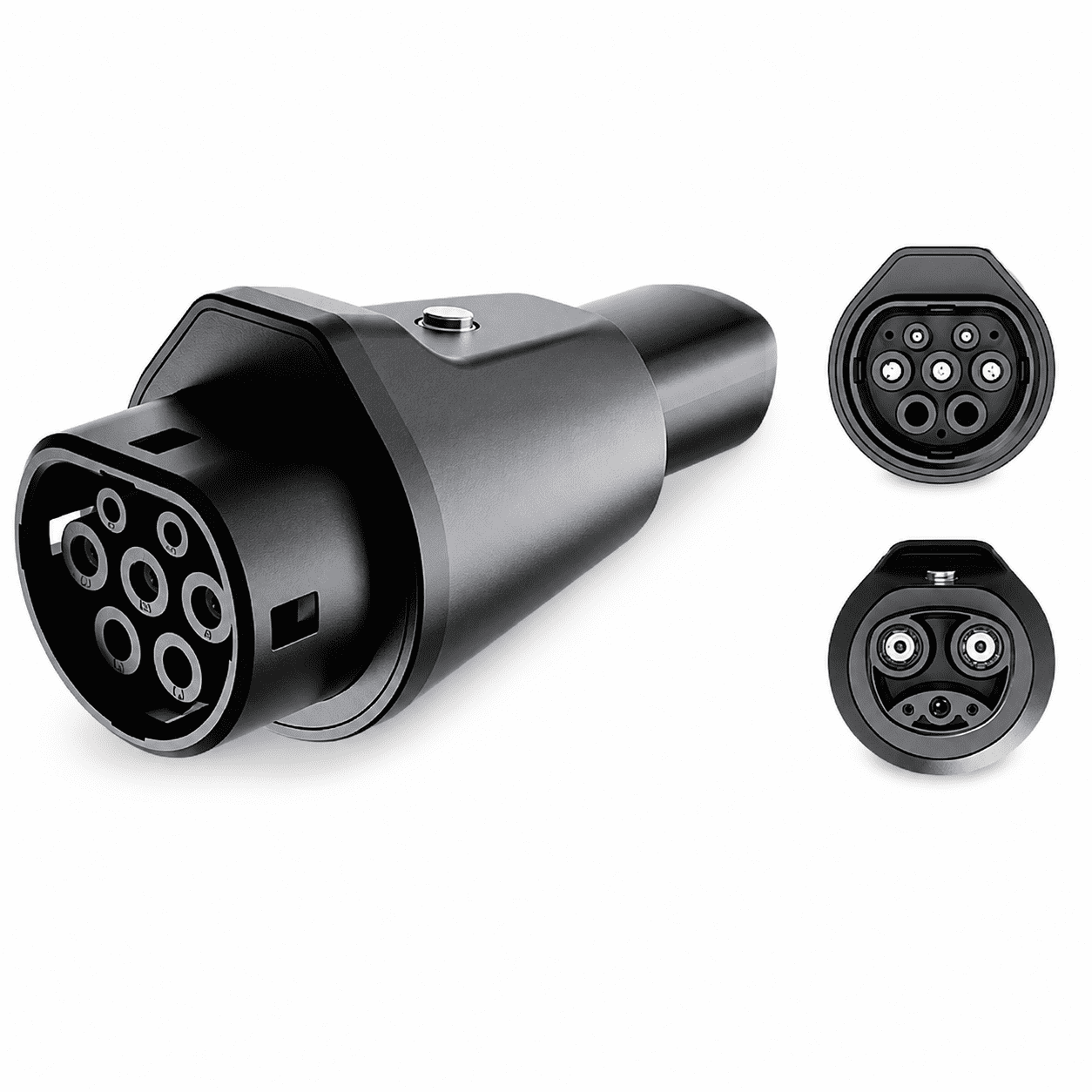

TYPE 2-NACS AC Adapter (P/N:EV.01.006)

Rated Current: 80A
Rated Voltage: 110VAC/250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30°C~+50°C
Product Net Weight: 0.34kg
Product Size:119.9*62.5*62.5mm

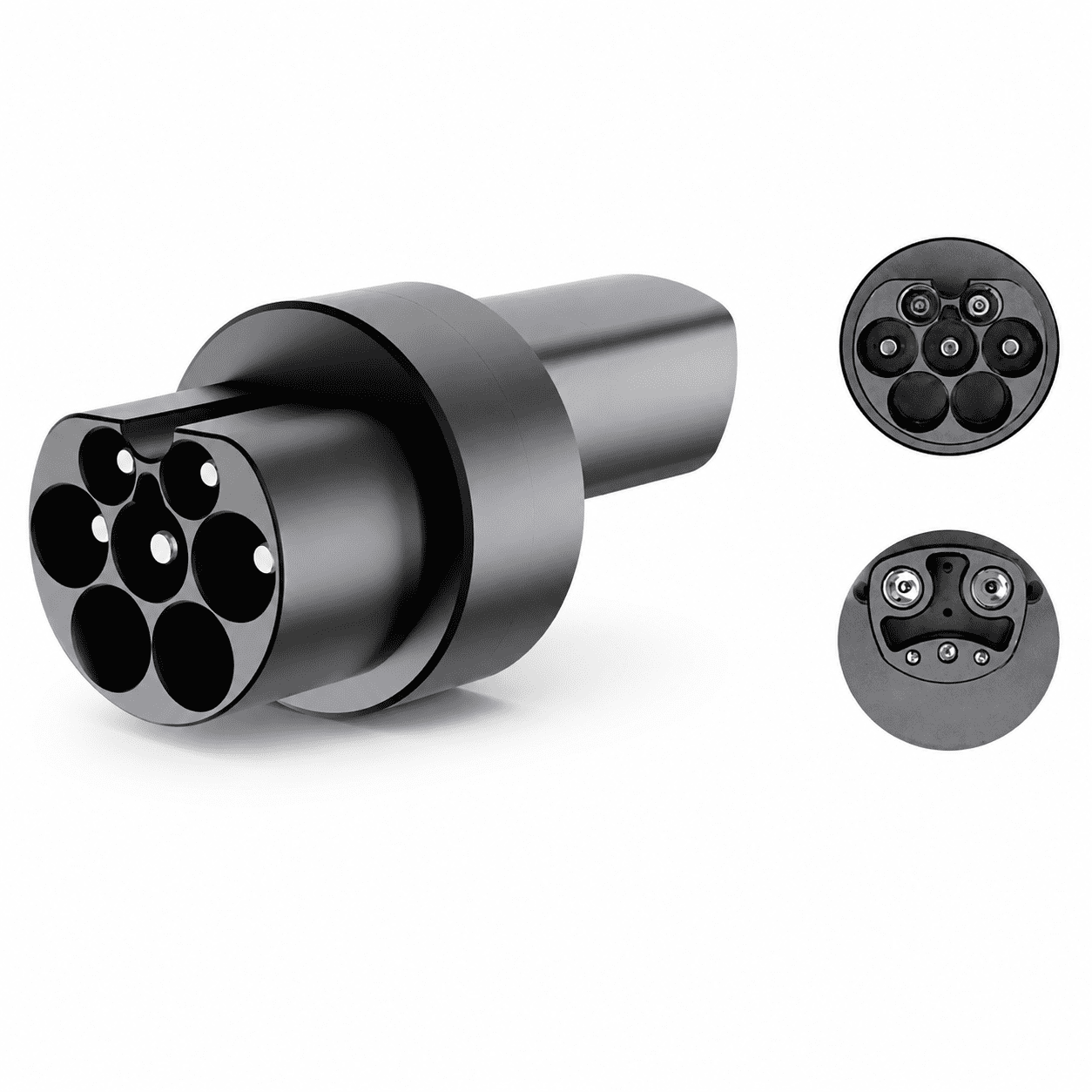

TYPE 2-NACS DC Adapter(P/N:EV.01.007)

Rated Current: 150A
Rated Voltage: 500V DC
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 0.44kg
Product Size:119.9*62.5*62.5mm

NACS-J1772 AC Adapter Without Lock 2.0

Rated Current: 80A Max
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working EnvironmentTemperature: -30°C~+50°C
Product Net Weight: 0.35kg
Product Size: 125.7*55*75.1mm

NACS-J1772 AC Adapter With Lock 1.0

Rated Current: 80A Max
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 0.42kg
Product Size:127.7*55*77.21mm

NACS-GB/T AC Adapter

Rated Current: 80A Max
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30°C~+50°C
Product Net Weight: 0.33kg
Product Size: 113.2*56.09*70.93mm

NACS-TYPE 2 AC Adapter

Rated Current:32A
Rated Voltage: 250VAC max
Waterproof Grade:IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30°C~+50°C
Product Net Weight: 0.42kg
Product Size:222.37*69.5*87.38mm

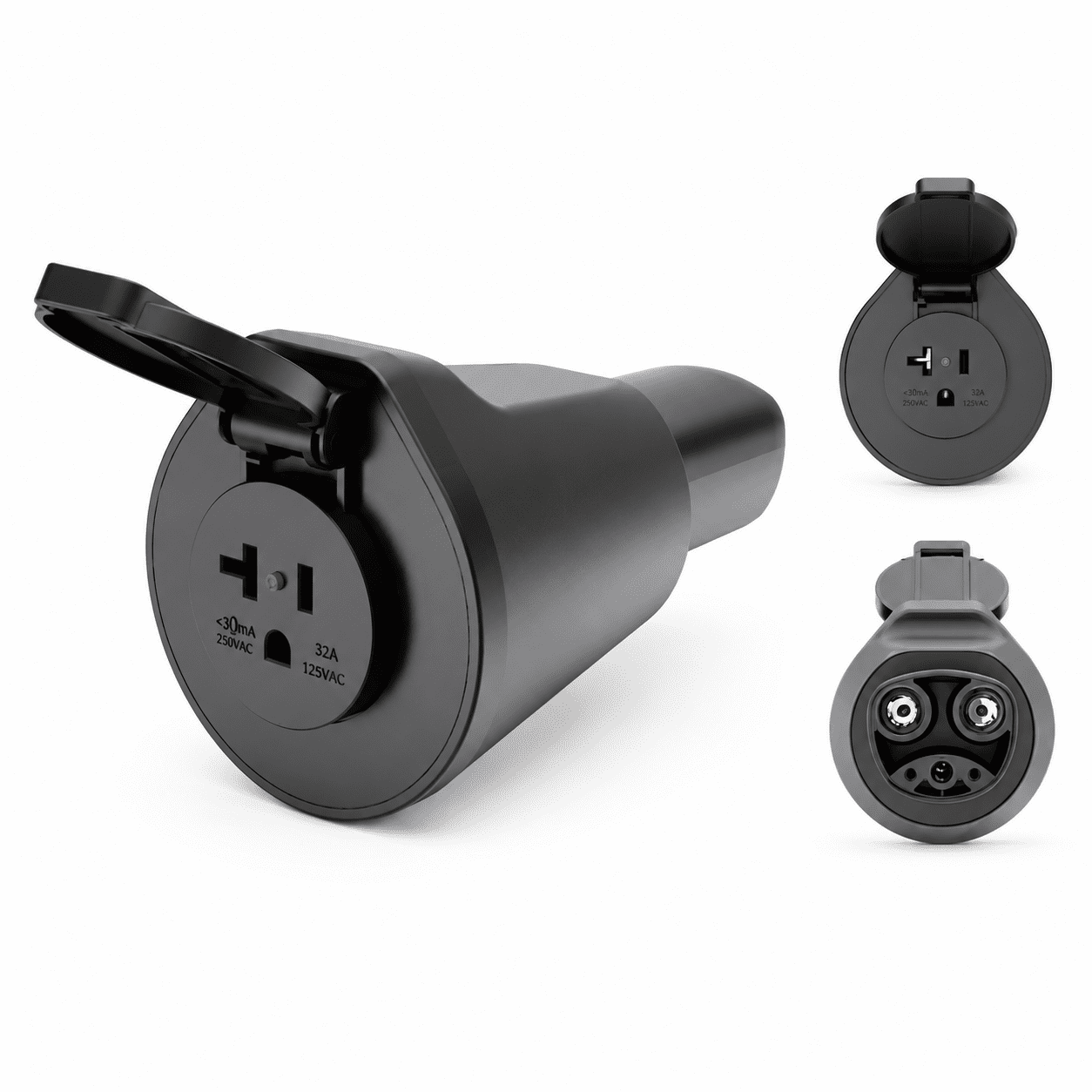

NACS V2L Adapter

Rated Current: 20A Max
Rated Voltage:125VAC Max
Waterproof Grade: IP54(After Mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Temperature: -30°C~+50°C
Product Net Weight: 0.35kg
Product Size: 140*58.6*69.8mm

GB/T-J1772 AC Adapter

Rated Current:32A
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30℃~+50℃
Product Net Weight: 0.36kg
Product Size:159.94*69.48*69.13mm

GB/T-TYPE 2 AC Adapter

Rated Current:32A Max
Rated Voltage: 250VAC Max /380VAC
Waterproof Grade:IP54(After Mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.49kg
Product Size:176*69.5*62.65mm

GB/T-NACS AC Adapter

Rated Current:32A
Rated Voltage:240V AC
Waterproof Grade:IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Size:155.1*69.5*63.3mm

AC Charging Station Product Series

Charging Pile Main Control and Communication Controller Products

AC/DC Charging Gun Adapter (CCS1/CCS2/GBT/Type 2/Type 1/NACS)

（EVCC）Electric Vehicle Communication Controller

In European-standard CCS DC charging, the EVCC is the communication controller installed on the electric vehicle side. It is responsible for communicating with the SECC (Supply Equipment Communication Controller) on the charging station side.

Charging Pile Cables / Custom Internal Wire Harnesses / Accessories

Charging pile testing equipment

Global Turnkey Deployment

From site assessment to installation and support, our turnkey services enable seamless deployment of charging stations across multiple continents and market conditions.

Smart User-Centric Platform

Our intuitive platform offers real-time monitoring, easy payments, and multilingual support, making EV charging accessible and effortless for users worldwide.

Get in Touch

Contact Share Charging

Reach out to us for innovative EV charging solutions and global support.

Email Us

zhaishuoyun@share-charging.com

Whats APP

+8615253120062

Visit Us

+8615253120062

Connect with Share Charging

Stay updated and join our community. Follow us on social media for the latest news, innovations, and global EV charging solutions.

Share Charging EV charging adapter solutions

AC EV Charging Adapter Solutions for Type 1, Type 2 and Regional Charging

Share Charging supports AC EV charging adapter solutions for Type 1, Type 2, GB/T, NACS, home charging, workplace charging, and regional AC charging compatibility projects.

AC adapter support for home and commercial charging

AC charging adapters help solve interface compatibility problems in home, workplace, hotel, apartment, and destination charging scenarios. Share Charging can support customers with connector selection, cable requirements, product configuration, and regional charging use cases.

Useful for private label and distributor programs

AC adapter products can be part of a private label EV charging accessory line or a distributor product portfolio. Share Charging can support product selection, customization discussion, and integration with broader AC charger solutions.

FAQ

Common adapter project questions

Can Share Charging support custom EV charging adapter projects?

Yes. Share Charging can support custom adapter discussion for different charging standards, connector configurations, target markets, and project scenarios.

Do adapter projects need testing before deployment?

Yes. Adapter projects should be reviewed for connector compatibility, electrical limits, communication behavior, safety requirements, and real charging scenarios before deployment.

Can adapters be included in OEM or private label cooperation?

Yes. Adapter products can be included in OEM, ODM, private label, distributor, or technical service cooperation depending on the product type and target market.
