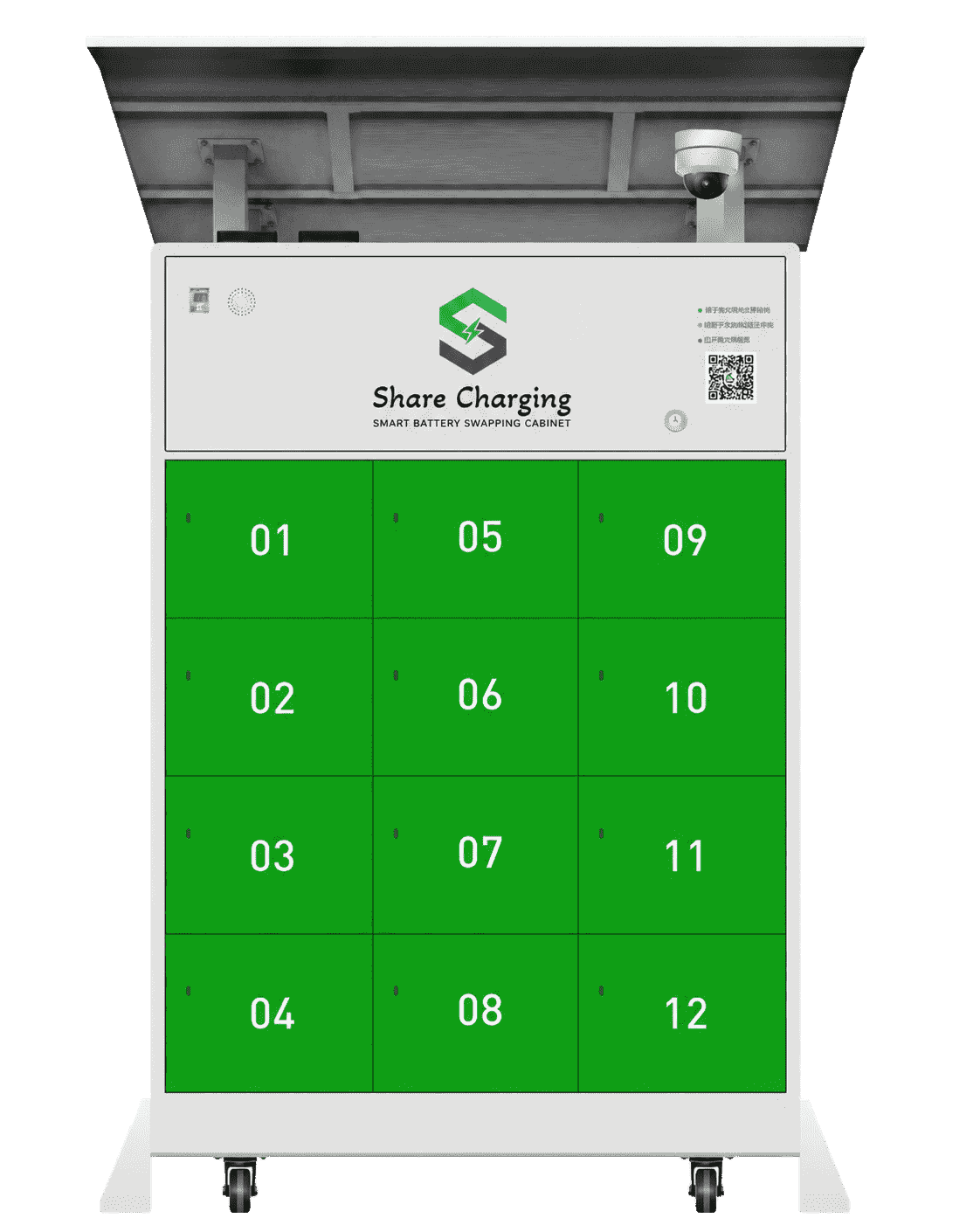

12-Slot Intelligent Battery Swap Cabinet for 48V/60V/72V Lithium Batteries
A smart 12-slot battery swapping and charging cabinet designed for 48V, 60V, and 72V lithium batteries. It features up to 15.6 kW total power, 1300 W charging power per compartment, DC 40–90V output, RS485/CAN battery communication, 4G connectivity, and IP54 protection. Integrated temperature, smoke, and water sensors, together with aerosol fire suppression, provide safe and reliable operation for commercial battery swapping applications.
Maximum supported power
0
kW
compatibility
0
%
| 12-Slot Intelligent Battery Swap Cabinet – Product Specification | |
|---|---|
| Item | Specification |
| Product Type | 12-Slot Intelligent Battery Swap & Charging Cabinet |
| Number of Compartments | 12 |
| Input Power | 3-Phase AC 380V, 50Hz |
| Total Rated Power | 15.6 kW |
| Maximum Charging Power per Slot | 1300 W |
| Output Voltage | DC 40–90V |
| Maximum Output Current | 15A per slot |
| Supported Battery Voltage | 48V / 60V / 72V Lithium Batteries |
| Charging Communication | RS485 / CAN |
| Network Communication | 4G |
| Standby Power | 30–40 W |
| Cabinet Control Power Supply | 12V / 100W |
| Control System | ST Microcontroller-Based Main Control & Acquisition Boards |
| Compartment Internal Size | 220 × 260 × 450 mm (H × W × D) |
| Cabinet Size – Without Canopy | 1652 × 1111 × 600 mm (H × W × D) |
| Cabinet Size – With Canopy | 1914 × 1111 × 600 mm (H × W × D) |
| Cabinet Material | Galvanized Sheet Metal |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Operating Humidity | 5%–95%, Frostless |
| Maximum Altitude | ≤ 2000 m |
| Cooling Method | Built-in DC Fan, Forced Air Cooling |
| Temperature Detection | 2 Cabinet Sensors + 12 Individual Compartment Sensors |
| Smoke Detection | Supported |
| Water Ingress Detection | Supported |
| Lightning Protection | Supported |
| Electricity Metering | Supported |
| Door Status Detection | Electronic Lock Signal Detection |
| Compartment Lighting | Supported |
| Bluetooth | Optional |
| Camera | Optional |
| Display | Optional |
| Fire Protection | 12 g Hot Aerosol Fire Extinguisher per Compartment |
| Remote Upgrade | Main Controller OTA Upgrade Supported |
| Installation / Fixing | Expansion Screws + 4 Foot Cups + 4 Foundations + 4 Universal Wheels |
| Salt Spray Resistance | 48 Hours |
| Safety Standard Design | EN60950 / GB4943 |
| Third-Party Certification | CQC Certification or Third-Party Testing Report |
