Share Charging team offers customized, end-to-end DC charging station solutions compliant with European standards.

Full-range DC fast charging stations from 40kW to 1.6MkW, supporting split-system architecture for high-traffic charging hubs.

CCS2-NACS/CCS1/GBT
/CHAdEMO

CCS2-NACS Charging Adapter Series

The CCS2-NACS charging adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.

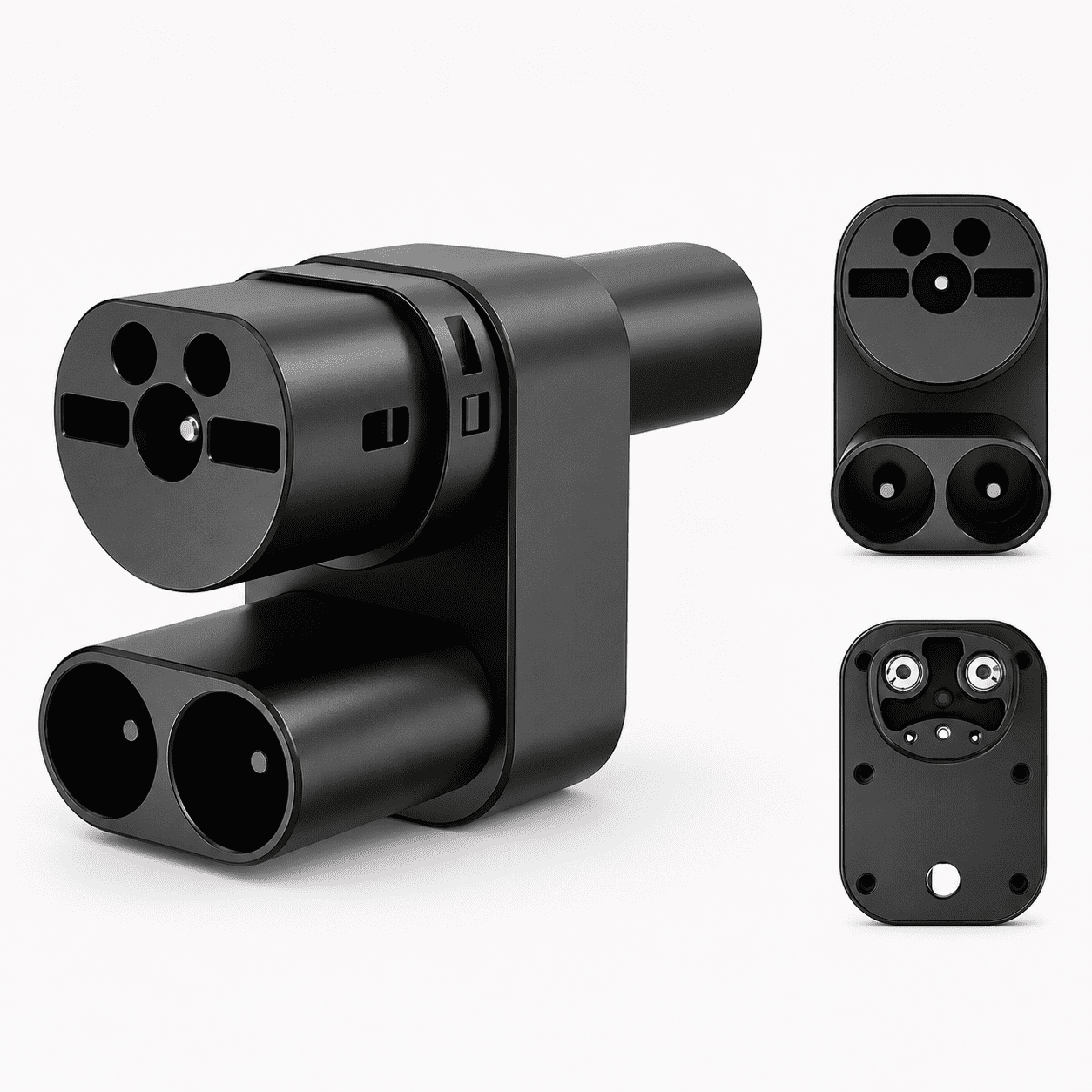

CCS2-NACS DC Adapter with Lock

Rated Current: 200A DC
Rated Voltage: 1000V DC
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Size:139.95*62.25*92mm

CCS2-NACS DC Adapter

Rated Current: 250A DC
Rated Voltage: 1000V DC
Waterproof Grade: IP54 (after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.87kg
Product Size:150.15*69.6*100.22mm

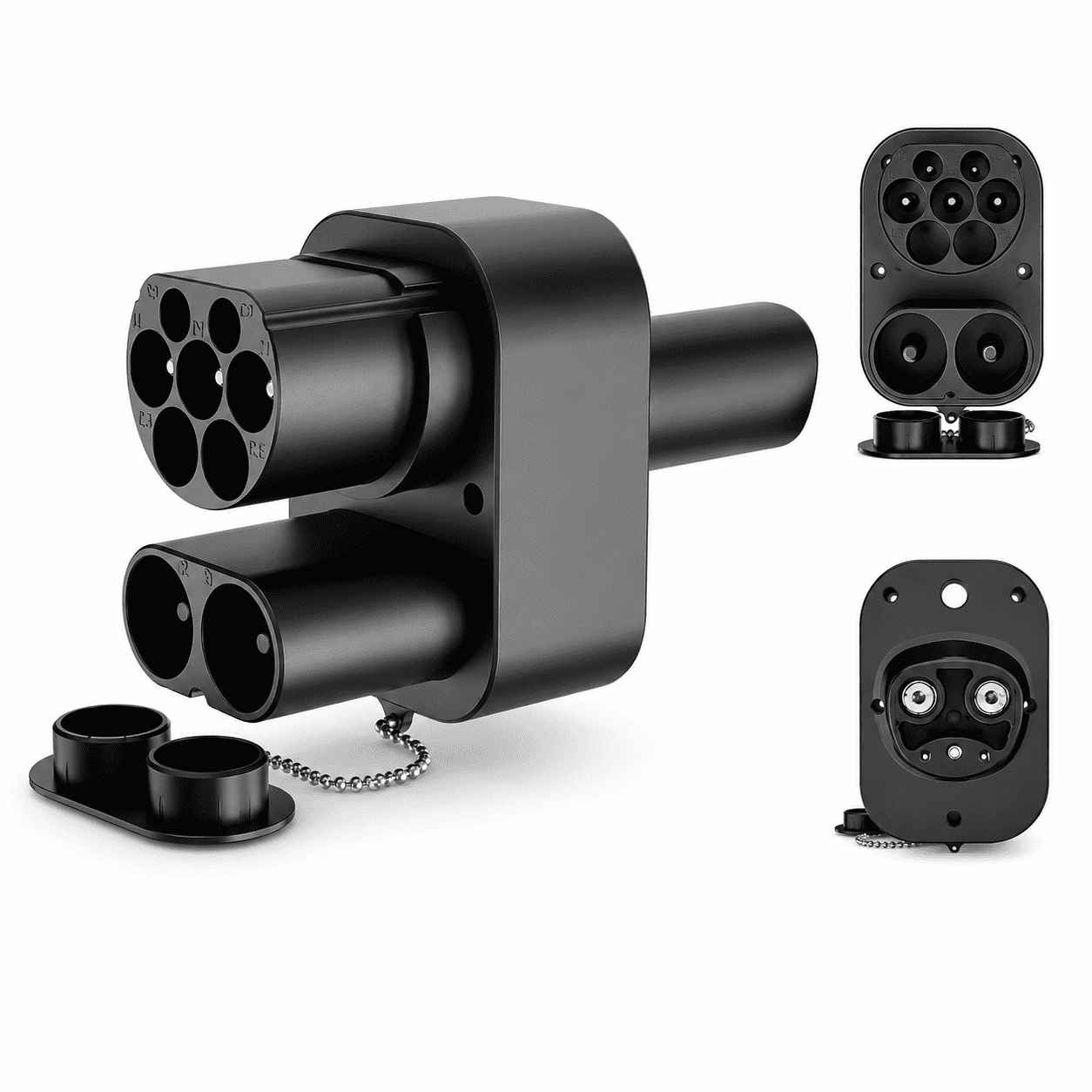

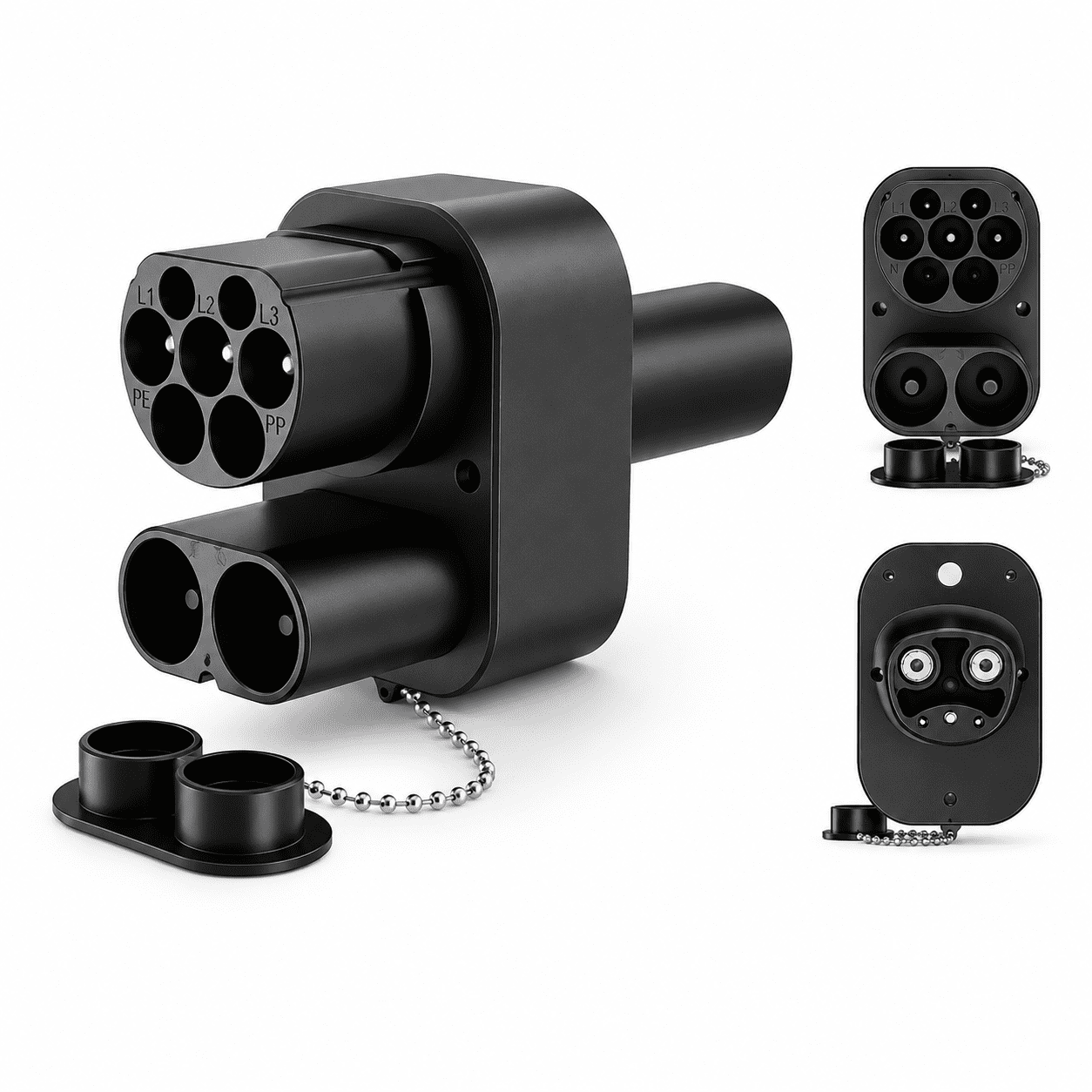

CCS2-NACS DC+AC Adapter

Rated Current: 250A DC/80A AC
Rated Voltage: 1000VDC/250VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.06kg
Product Size:150.15*69.6*100.22mm

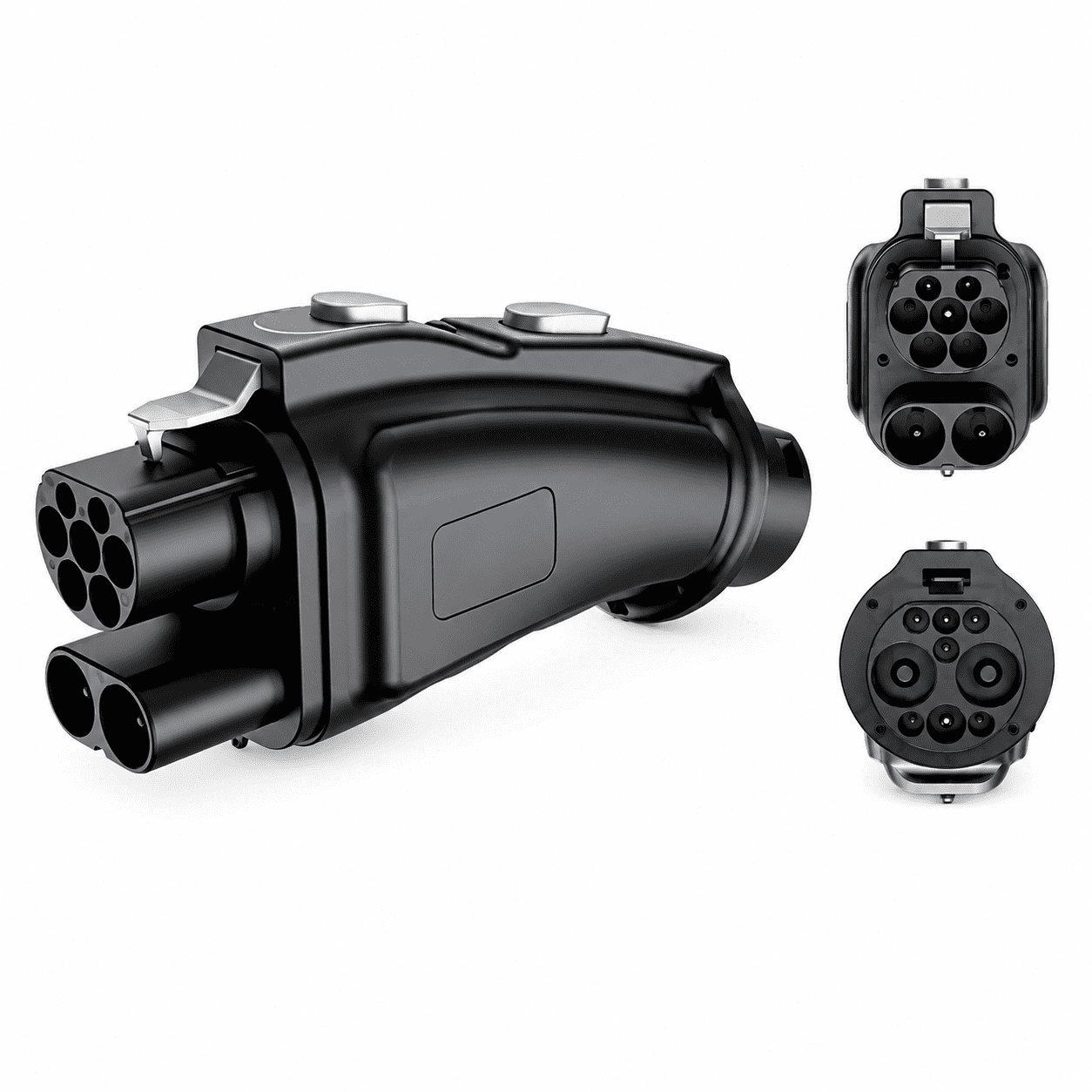

CCS2-CHAdeMO DC Adapter

Rated Current: 250A Max
Rated Voltage: 1000VDCMax
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30℃~+50℃
Product Net Weight: 1.88kg
Product Size:301.43*95*150.03mm

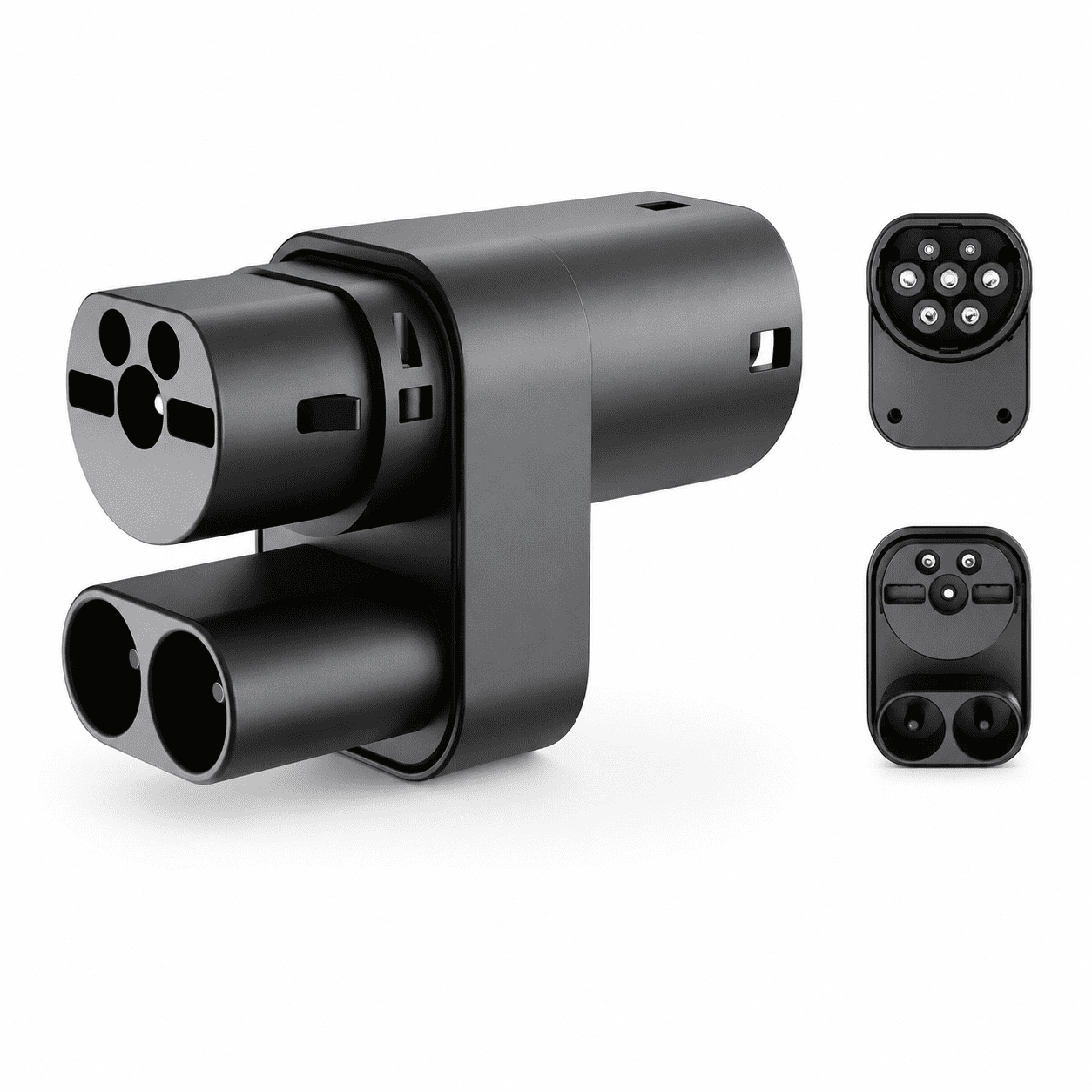

CCS2-TYPE 2 DC Adapter

Rated Current: 210A Max
Rated Voltage: 410VDC
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.73kg
Product Size:135.23*67.05*98.08mm

CCS2-NACS DC+AC Cybertruck Adapter

Rated Current: 250A DC/80A AC
Rated Voltage: 1000VDC/250VAC Max
Waterproof Grade: IP54 (after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.85kg
Product Size:172.15*69.6*106.63mm

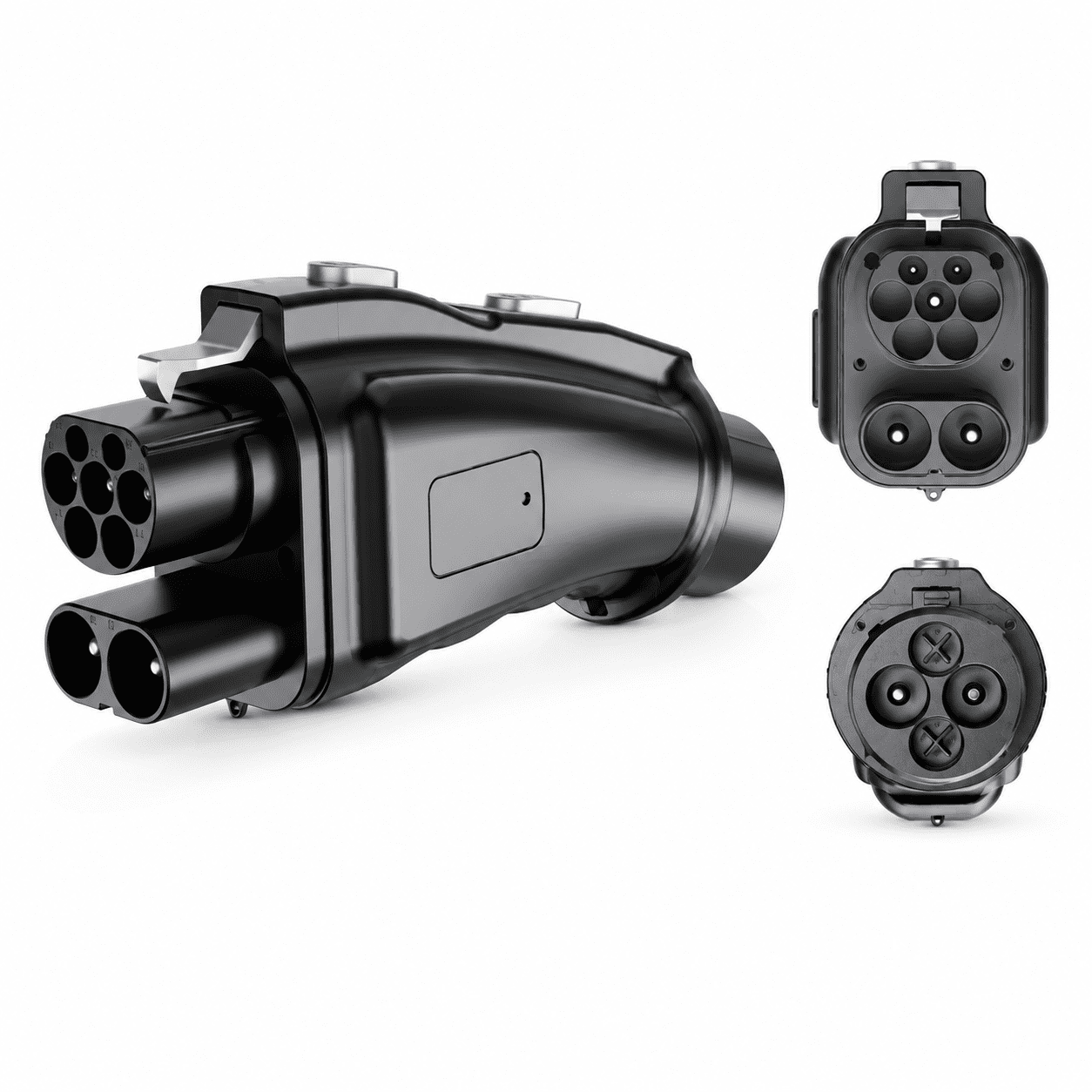

CCS2-GBT DC Adapter

Rated Current: 300A Max
Rated voltage: 1000VDC
Waterproof Grade: IP54(After Mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.88kg
Product Dimensions: 294.39*95.48*145.39mm

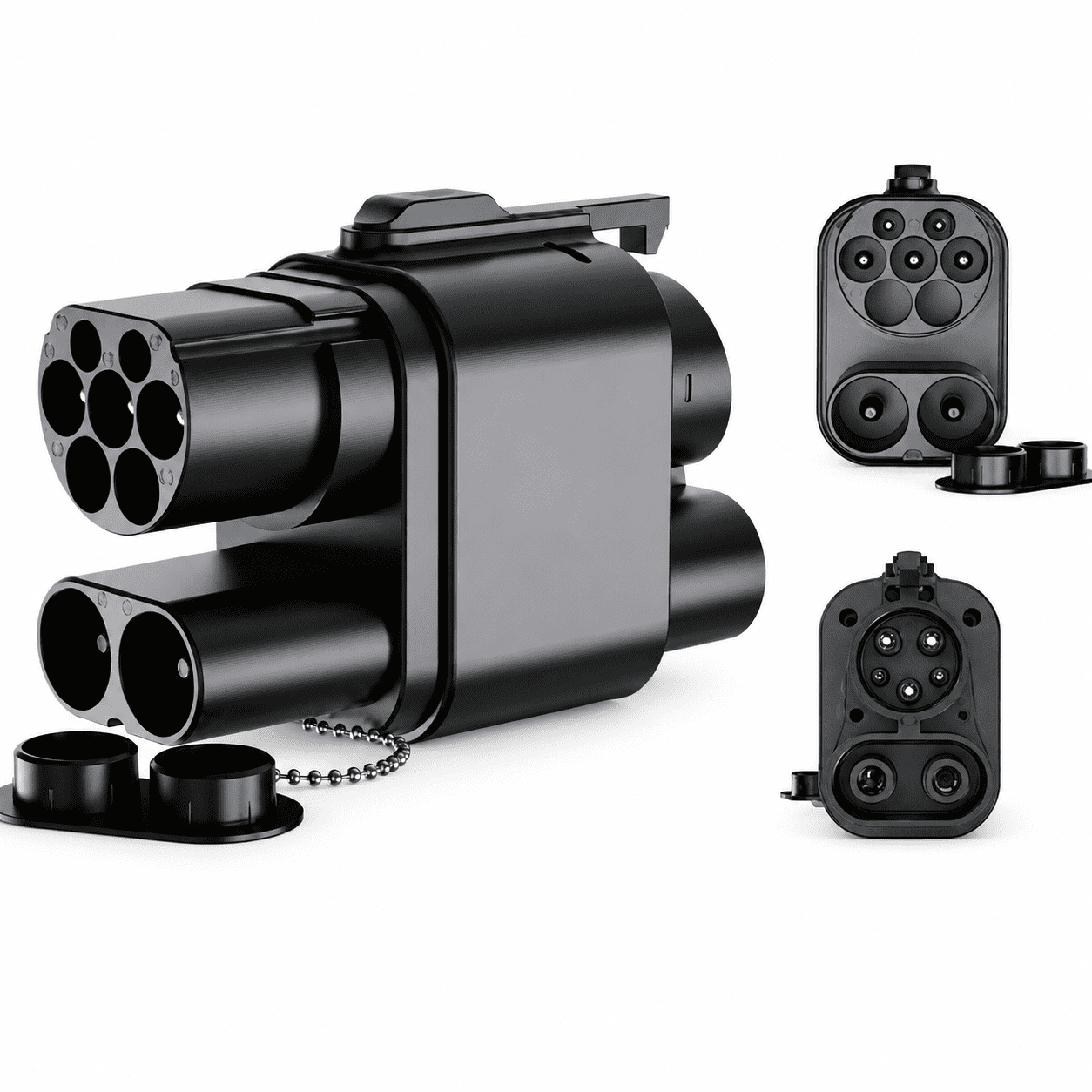

CCS2-CCS1 DC+AC Adapter

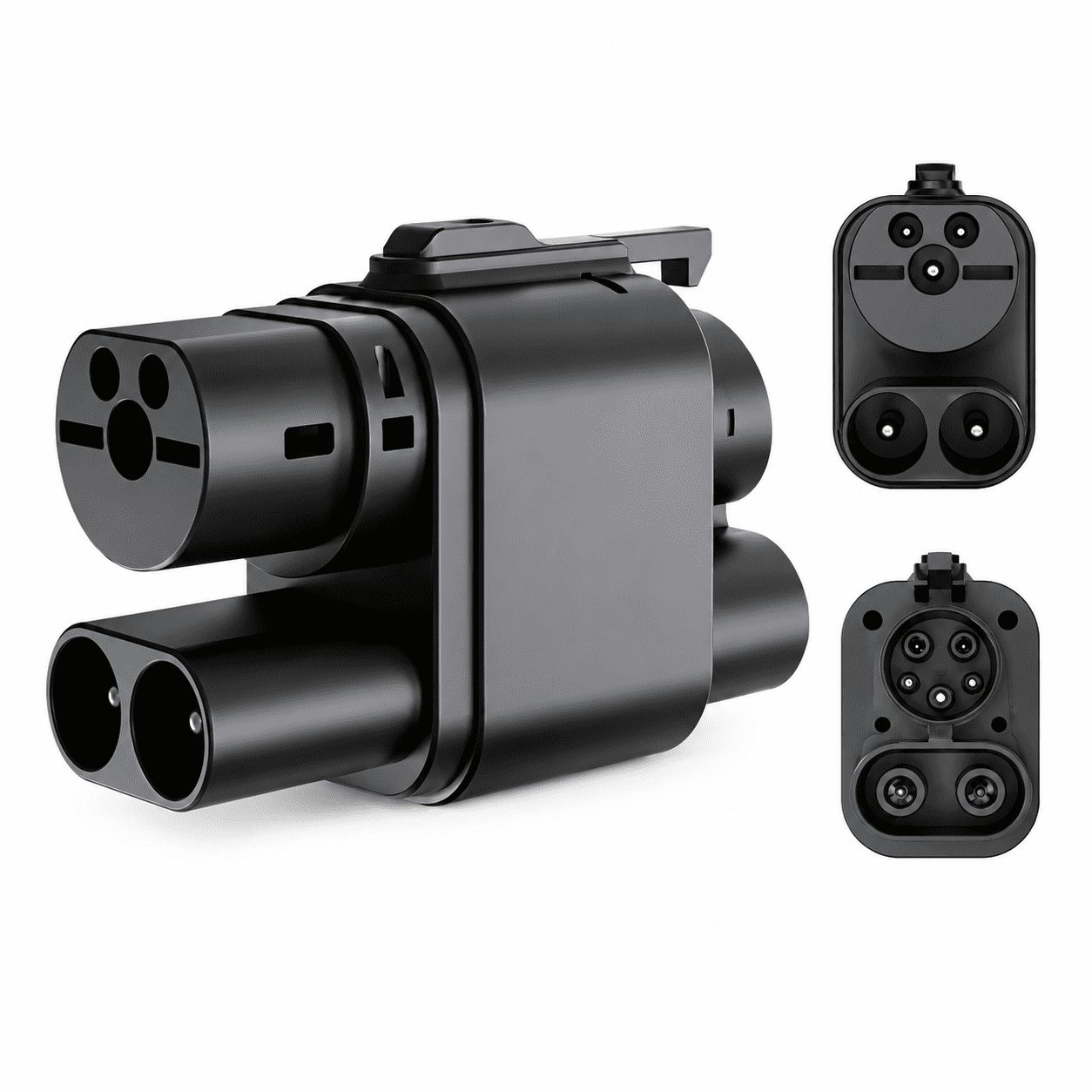

CCS2-CCS1 DC Adapter with lock

Rated Current: 250A DC
Rated Voltage: 1000VDC
Waterproof Grade: IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.73kg
Product Dimensions: 149.85*68.25*103.2mm

AC Charging Station Product Series

Charging Pile Main Control and Communication Controller Products

AC/DC Charging Gun Adapter (CCS1/CCS2/GBT/Type 2/Type 1/NACS)

（EVCC）Electric Vehicle Communication Controller

In European-standard CCS DC charging, the EVCC is the communication controller installed on the electric vehicle side. It is responsible for communicating with the SECC (Supply Equipment Communication Controller) on the charging station side.

Charging Pile Cables / Custom Internal Wire Harnesses / Accessories

Charging pile testing equipment

Global Turnkey Deployment

From site assessment to installation and support, our turnkey services enable seamless deployment of charging stations across multiple continents and market conditions.

Smart User-Centric Platform

Our intuitive platform offers real-time monitoring, easy payments, and multilingual support, making EV charging accessible and effortless for users worldwide.

Get in Touch

Contact Share Charging

Reach out to us for innovative EV charging solutions and global support.

Email Us

zhaishuoyun@share-charging.com

Whats APP

+8615253120062

Visit Us

+8615253120062

Connect with Share Charging

Stay updated and join our community. Follow us on social media for the latest news, innovations, and global EV charging solutions.

Share Charging EV charging adapter solutions

CCS2 DC Fast Charging Adapter Solutions for Global EV Projects

Share Charging supports CCS2 DC adapter projects for customers that need reliable charging interface conversion, overseas EV compatibility, custom EV charger solution support, and adapter product development for international charging scenarios.

CCS2 adapter support for cross-standard charging

CCS2 adapter projects help customers connect vehicles, chargers, and regional charging standards when direct compatibility is limited. Share Charging can support interface selection, communication route evaluation, electrical requirements, mechanical structure, and project-specific adapter development.

Useful for EV exporters, operators and technical distributors

Adapter products are often needed by EV exporters, charging station operators, service partners, testing teams, and distributors working across Europe, China, North America, and other mixed-standard markets.

FAQ

Common adapter project questions

Can Share Charging support custom EV charging adapter projects?

Yes. Share Charging can support custom adapter discussion for different charging standards, connector configurations, target markets, and project scenarios.

Do adapter projects need testing before deployment?

Yes. Adapter projects should be reviewed for connector compatibility, electrical limits, communication behavior, safety requirements, and real charging scenarios before deployment.

Can adapters be included in OEM or private label cooperation?

Yes. Adapter products can be included in OEM, ODM, private label, distributor, or technical service cooperation depending on the product type and target market.
