Share Charging team offers customized, end-to-end DC charging station solutions compliant with European standards.

Full-range DC fast charging stations from 40kW to 1.6MkW, supporting split-system architecture for high-traffic charging hubs.

GB/T-Adapter

CCS2-NACS Charging Adapter Series

The CCS2-NACS charging adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.

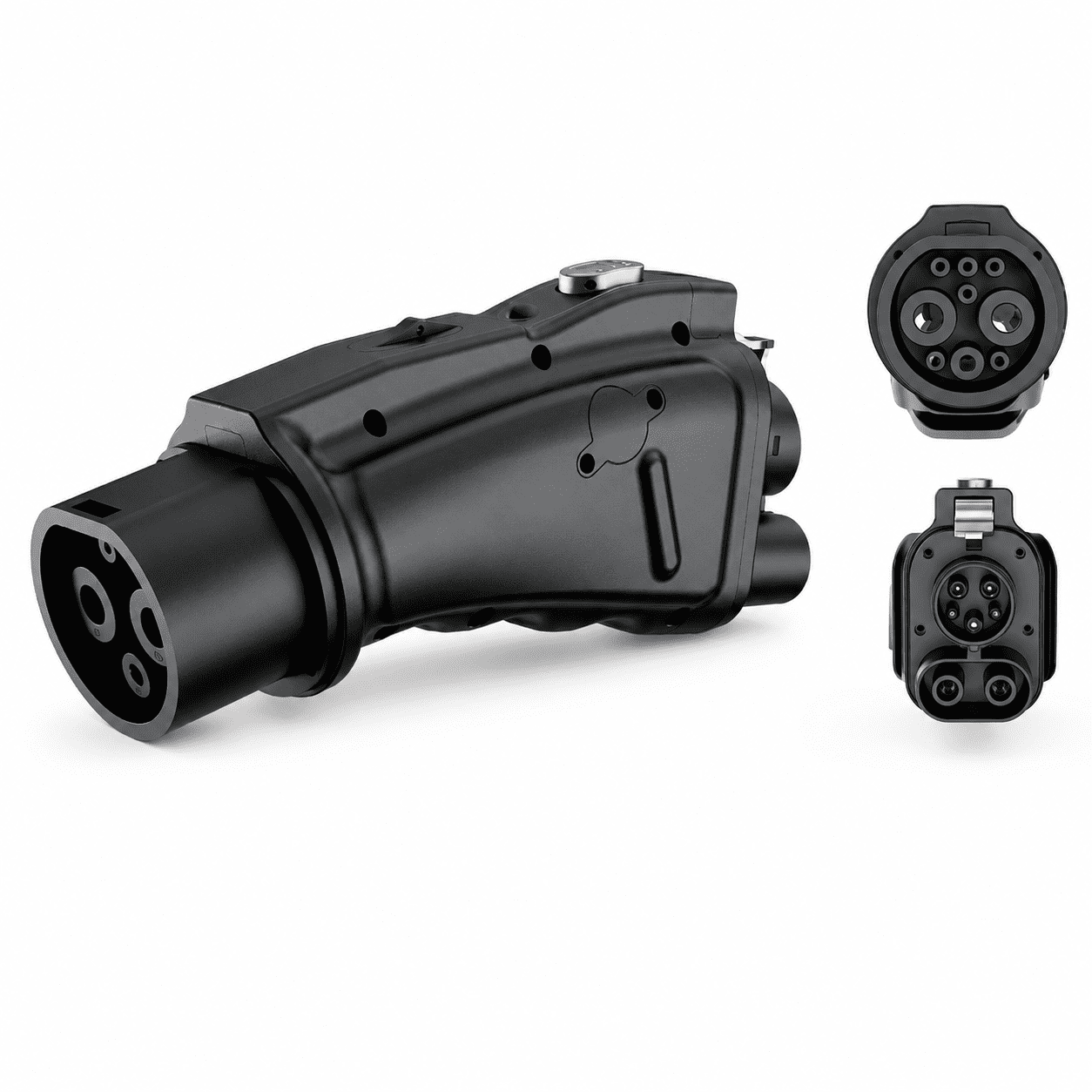

GB/T-CCS2 DC Adapter

Rated Current:250A Max
Rated Voltage:1000V DCMax
Waterproof Grade:IP54(after Mating)
Plastic Shell: Thermoplastic Plastic
Conductor:Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.5kg
Product Size:290.5*77*133.01mm

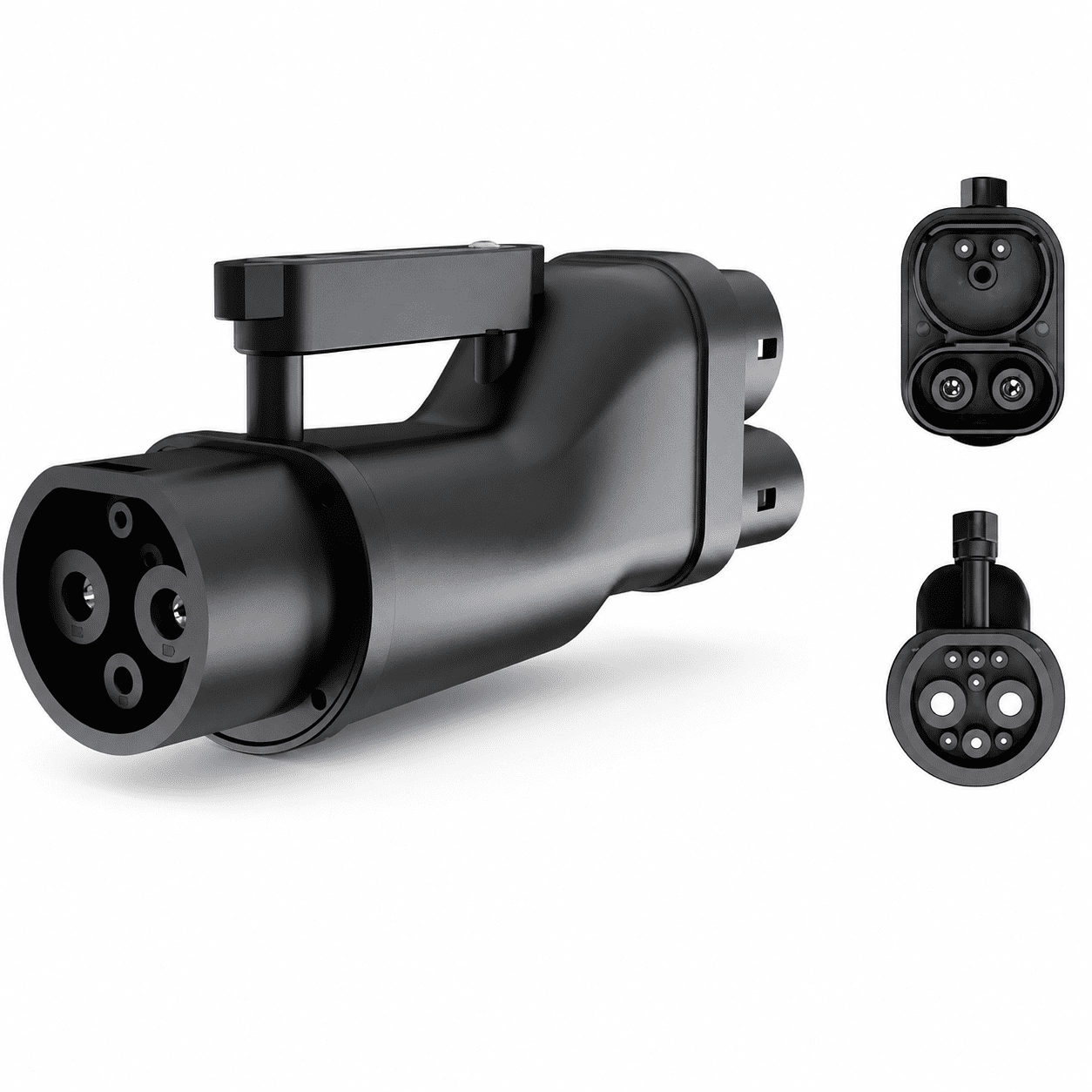

GB/T-CCS1 DC Adapter

Rated Current: 250A Max
Rated Voltage:1000V DCMax
Waterproof Grade: IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.43kg
Product Size:283.86*94.08*153.27mm

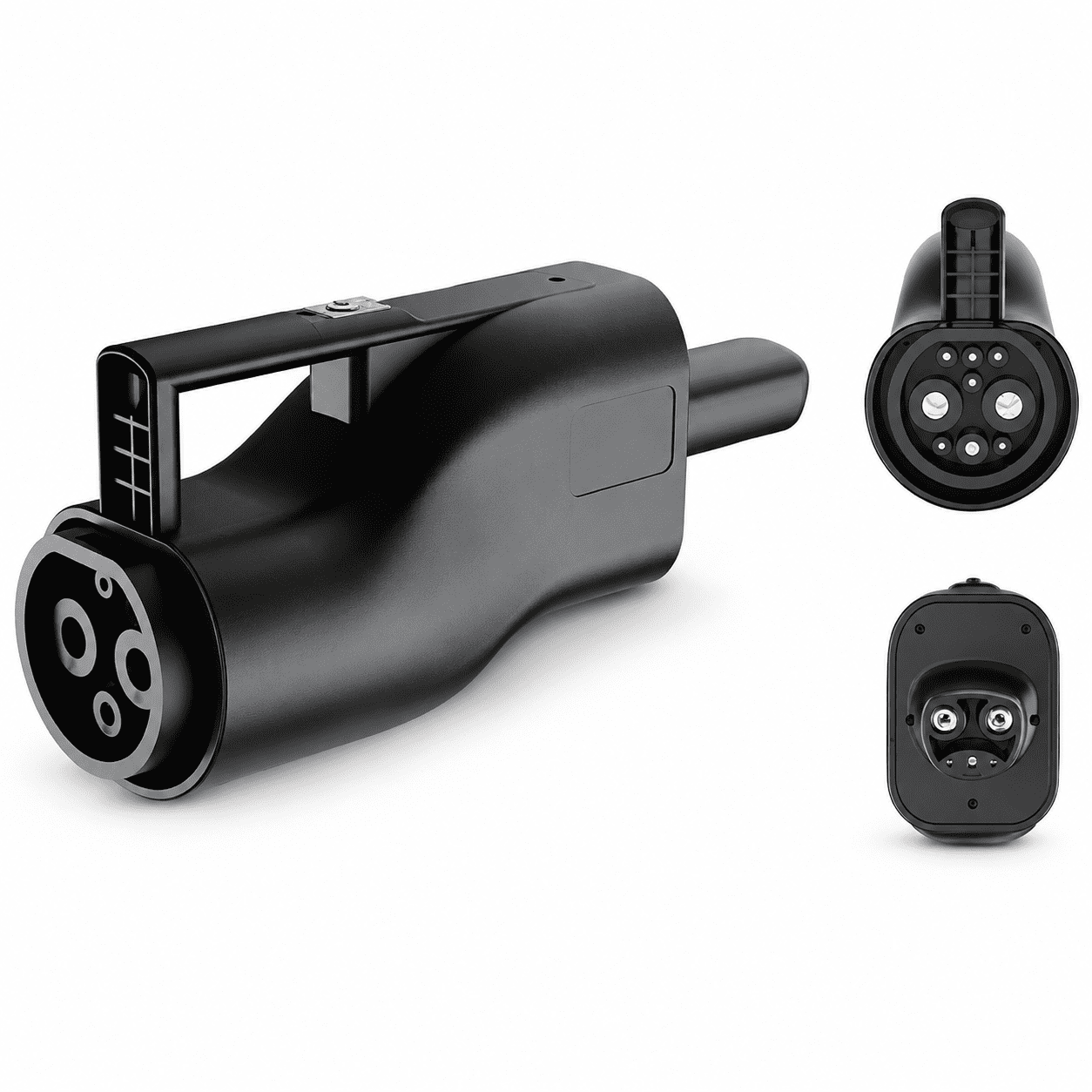

GB/T-NACS DC Adapter

Rated Current:250A Max
Rated Voltage:1000V AC
Waterproof Grade:IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.78kg
Product Size:305*98*142.77mm

GB/T-J1772 AC Adapter

Rated Current:32A
Rated Voltage: 250VAC Max
Waterproof Grade: IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30℃~+50℃
Product Net Weight: 0.36kg
Product Size:159.94*69.48*69.13mm

GB/T-TYPE 2 AC Adapter

Rated Current:32A Max
Rated Voltage: 250VAC Max /380VAC
Waterproof Grade:IP54(After Mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.49kg
Product Size:176*69.5*62.65mm

GB/T-NACS AC Adapter

Rated Current:32A
Rated Voltage:240V AC
Waterproof Grade:IP54(After Mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Size:155.1*69.5*63.3mm

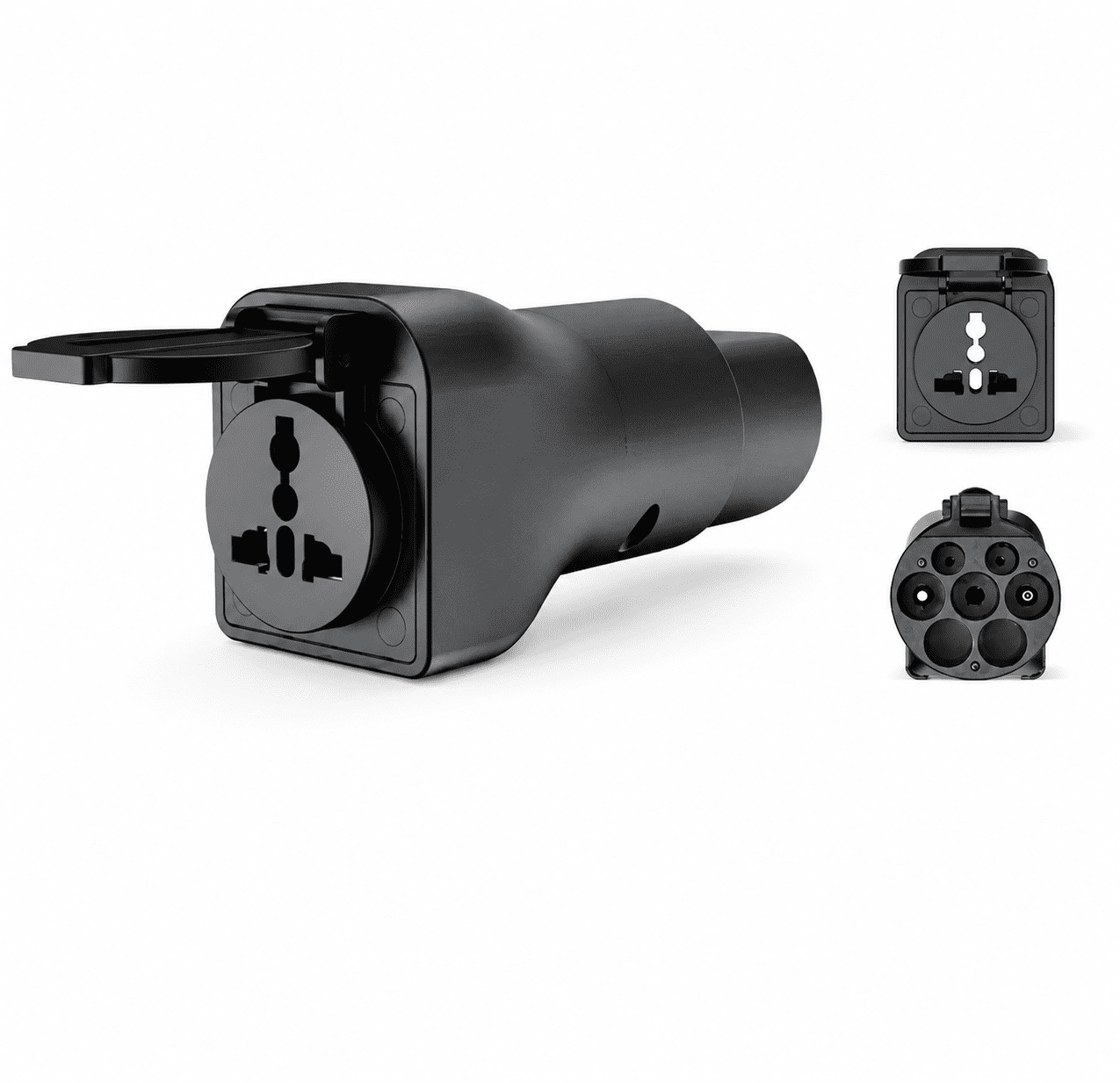

GB/T V2L Adapter

Rated Current: 16A Max
Rated Voltage:220VAC Max
Waterproof Grade:IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy,Silver Plated Surface
Working Environment Temperature: -30°C~+50°C
Product Net Weight: 0.3kg
Product Size:145.1*57.2*69.8mm

AC Charging Station Product Series

Charging Pile Main Control and Communication Controller Products

AC/DC Charging Gun Adapter (CCS1/CCS2/GBT/Type 2/Type 1/NACS)

（EVCC）Electric Vehicle Communication Controller

In European-standard CCS DC charging, the EVCC is the communication controller installed on the electric vehicle side. It is responsible for communicating with the SECC (Supply Equipment Communication Controller) on the charging station side.

Charging Pile Cables / Custom Internal Wire Harnesses / Accessories

Charging pile testing equipment

Global Turnkey Deployment

From site assessment to installation and support, our turnkey services enable seamless deployment of charging stations across multiple continents and market conditions.

Smart User-Centric Platform

Our intuitive platform offers real-time monitoring, easy payments, and multilingual support, making EV charging accessible and effortless for users worldwide.

Get in Touch

Contact Share Charging

Reach out to us for innovative EV charging solutions and global support.

Email Us

zhaishuoyun@share-charging.com

Whats APP

+8615253120062

Visit Us

+8615253120062

Connect with Share Charging

Stay updated and join our community. Follow us on social media for the latest news, innovations, and global EV charging solutions.

Share Charging EV charging adapter solutions

GB/T DC Fast Charging Adapter for CCS and Overseas Charging Compatibility

Share Charging supports GB/T DC adapter solutions for EV charging projects that require GB/T, CCS2, CCS1, NACS, or CHAdeMO interface conversion and overseas charging compatibility.

GB/T adapter solution for export EV projects

GB/T adapter products are useful when vehicles or charging infrastructure need to operate across different charging standards. Share Charging can support technical evaluation, adapter selection, control logic, communication behavior, and charging safety considerations.

Charging interface conversion support

For custom adapter projects, the engineering process may include connector matching, cable and enclosure requirements, communication compatibility, test planning, and deployment scenario review.

FAQ

Common adapter project questions

Can Share Charging support custom EV charging adapter projects?

Yes. Share Charging can support custom adapter discussion for different charging standards, connector configurations, target markets, and project scenarios.

Do adapter projects need testing before deployment?

Yes. Adapter projects should be reviewed for connector compatibility, electrical limits, communication behavior, safety requirements, and real charging scenarios before deployment.

Can adapters be included in OEM or private label cooperation?

Yes. Adapter products can be included in OEM, ODM, private label, distributor, or technical service cooperation depending on the product type and target market.
