Share Charging team offers customized, end-to-end DC charging station solutions compliant with European standards.
Full-range DC fast charging stations from 40kW to 1.6MkW, supporting split-system architecture for high-traffic charging hubs.
CCS1-NACS/CCS2/GBT
/CHAdEMO
CCS1-NACS Charging Adapter Series
The CCS1-NACS charging adapter series is designed to improve compatibility between CCS1 charging infrastructure and NACS-equipped electric vehicles. With a compact structure, durable housing, and reliable electrical connection, this adapter series helps users access more charging options while supporting safe, stable, and efficient charging in different application scenarios.

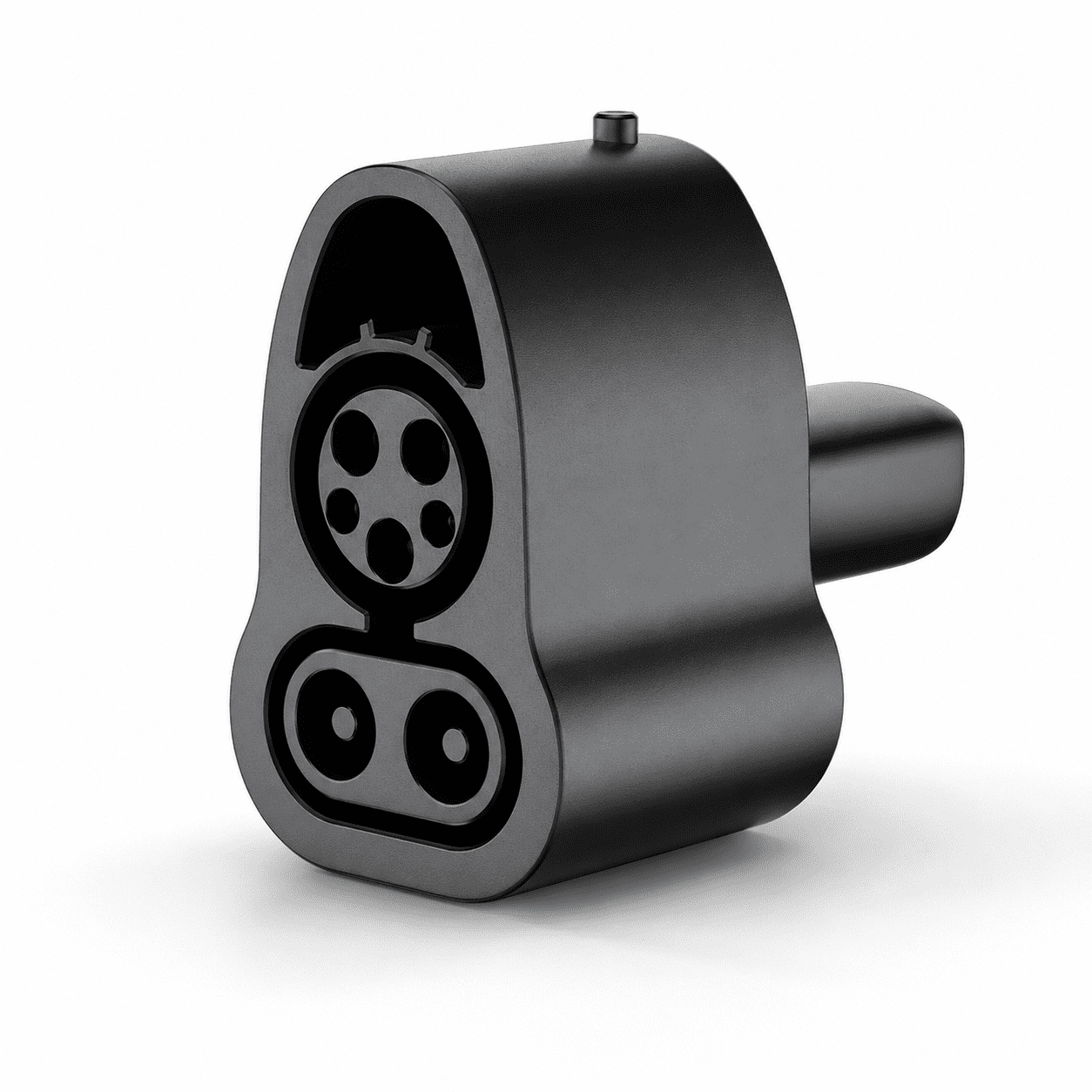

CCS1-NACS DC Adapter (2.0)
2. Rated Voltage: 1000V DC
3. Waterproof Grade: IP54 (After Mating)
4. Plastic Shell: Thermoplastic Plastic
5. Conductor: Copper alloy, silver plated surface
6. Working Environment Temperature: -30°C ~ +50°C
7. Product Net Weight: 0.71 kg
8. Product Size: 137.39 × 79.5 × 122.93 mm

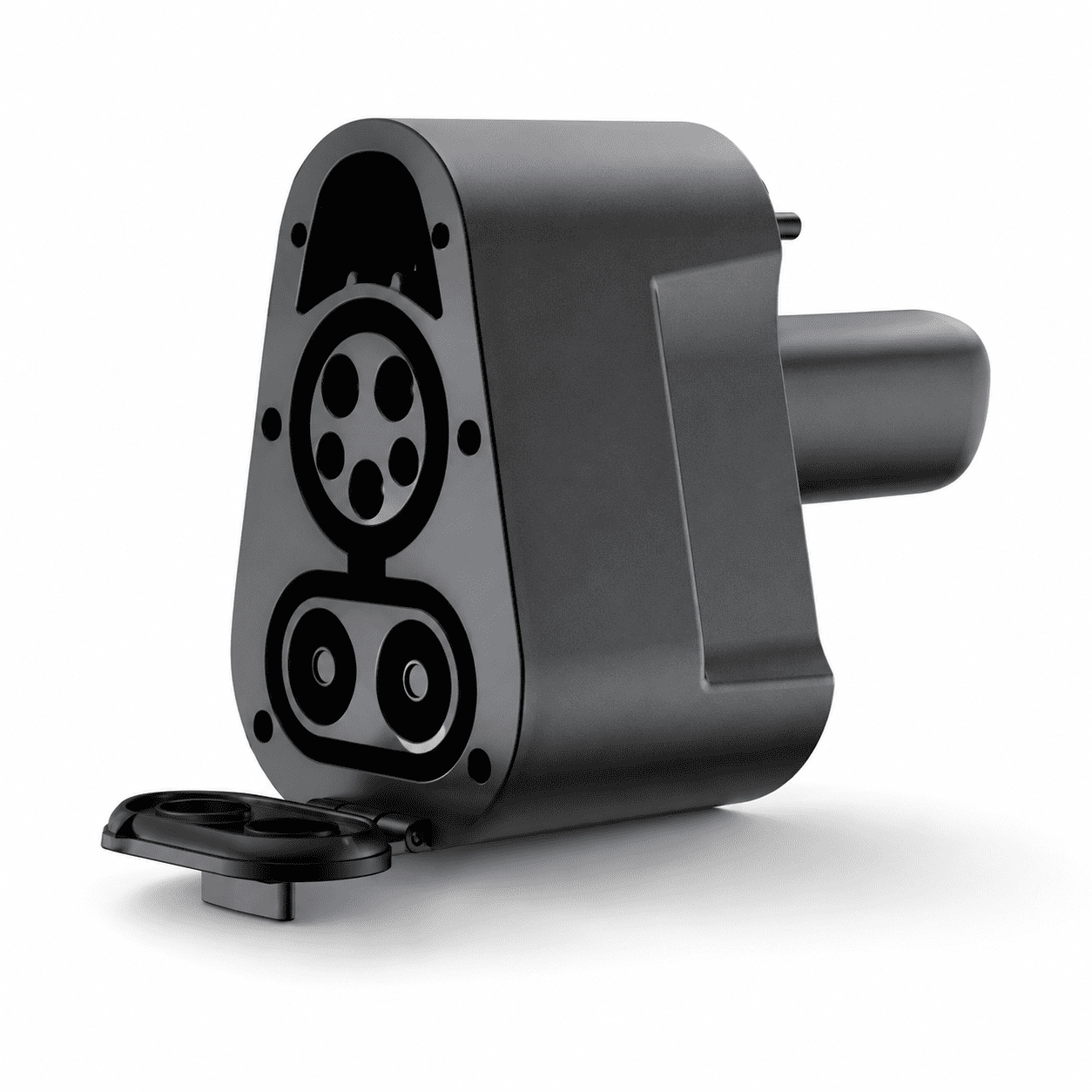

CCS1-NACS DC Adapter (3.0)
2. Rated Voltage: 1000V DC
3. Waterproof Grade: IP54 (After Mating)
4. Plastic Shell: Thermoplastic Plastic
5. Conductor: Copper alloy, silver plated surface
6. Working Environment Temperature: -30°C ~ +50°C
7. Product Net Weight: 0.71 kg
8. Product Size: 137.39 × 79.5 × 122.93 mm

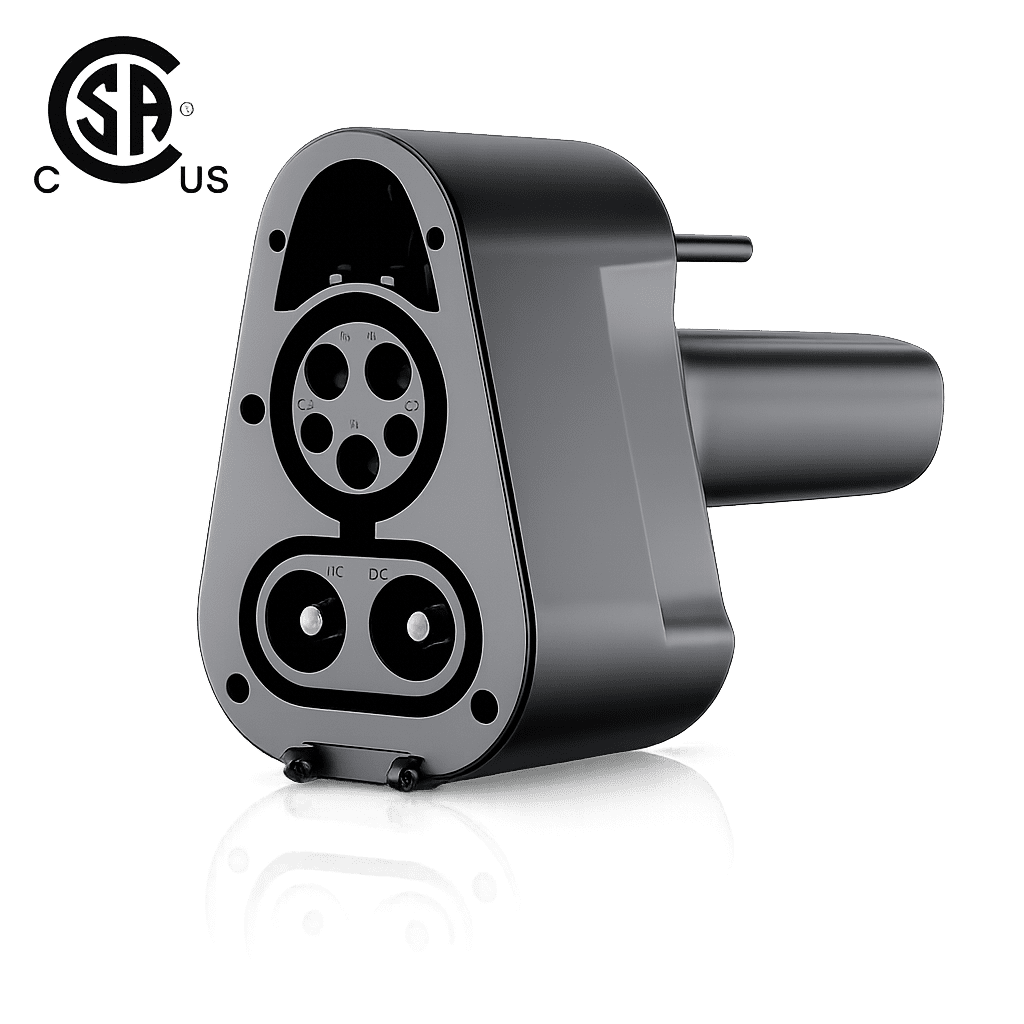

CCS1-NACS DC+AC Adapter (3.0)
1.Rated Current: 300A DC / 80A AC
2.Rated Voltage: 1000V / 240V Max
3.Waterproof Grade: IP54 After mating
4.Plastic Shell: Thermoplastic Plastic
5.Conductor: Copper alloy, Silver Plated Surface
6.Working Environment Temperature: -30℃ ~ +50℃
7.Product Net Weight: 0.8kg
8.Product Dimensions: 137.39 × 79.5 × 122.93mm

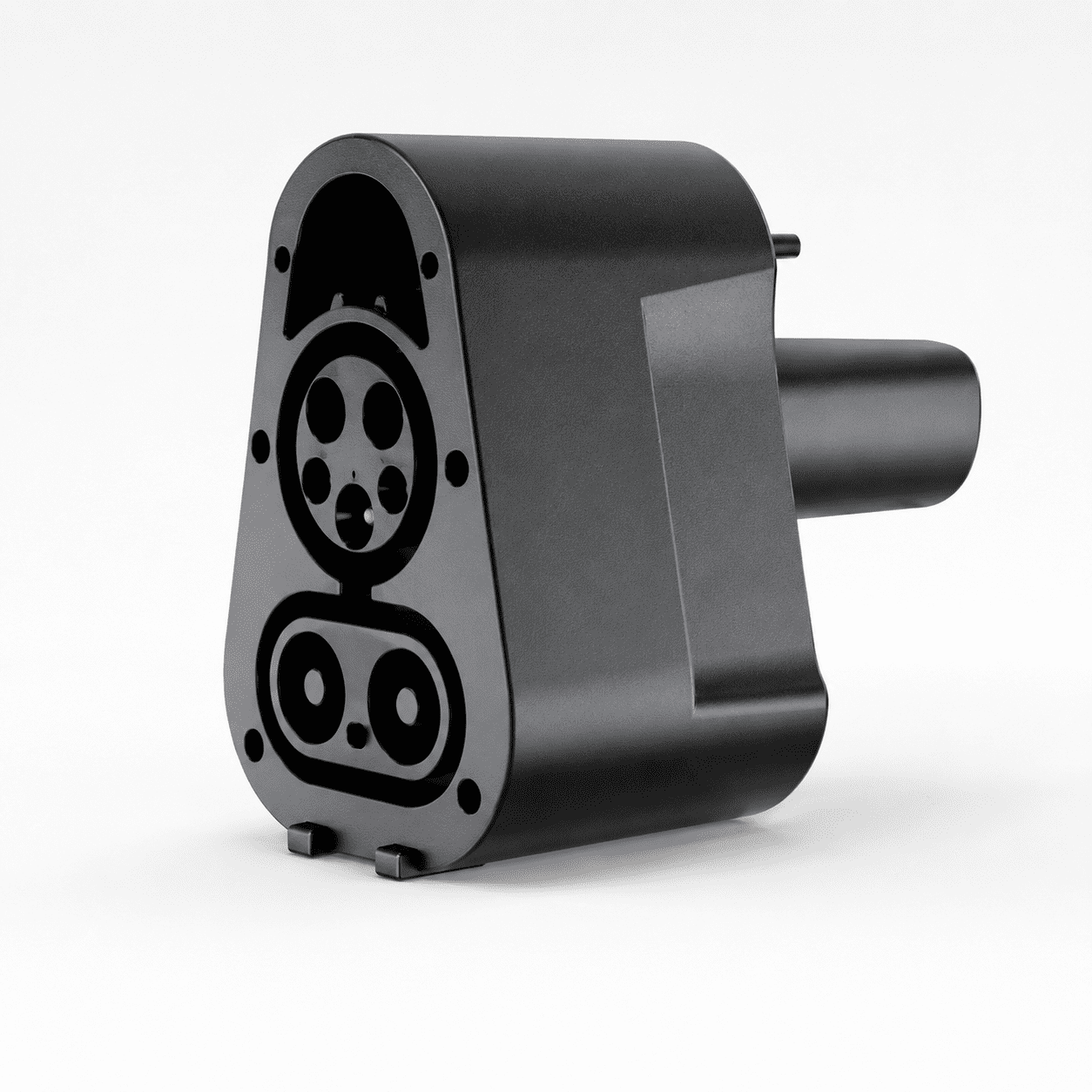

CCS1-NACS DC Cybertruck Adapter (4.0)
Rated Voltage: 1000VDC
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30℃~+50℃
Product Net Weight: 1.055kg
Product Dimensions: 159.6*85.09*123.32mm
CCS1-NACS DC+AC Cybertruck Adapter(4.0)
Rated Voltage: 100VDC/240VAC Max
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.88kg
Product Dimensions: 137.39*79.5*122.93mm

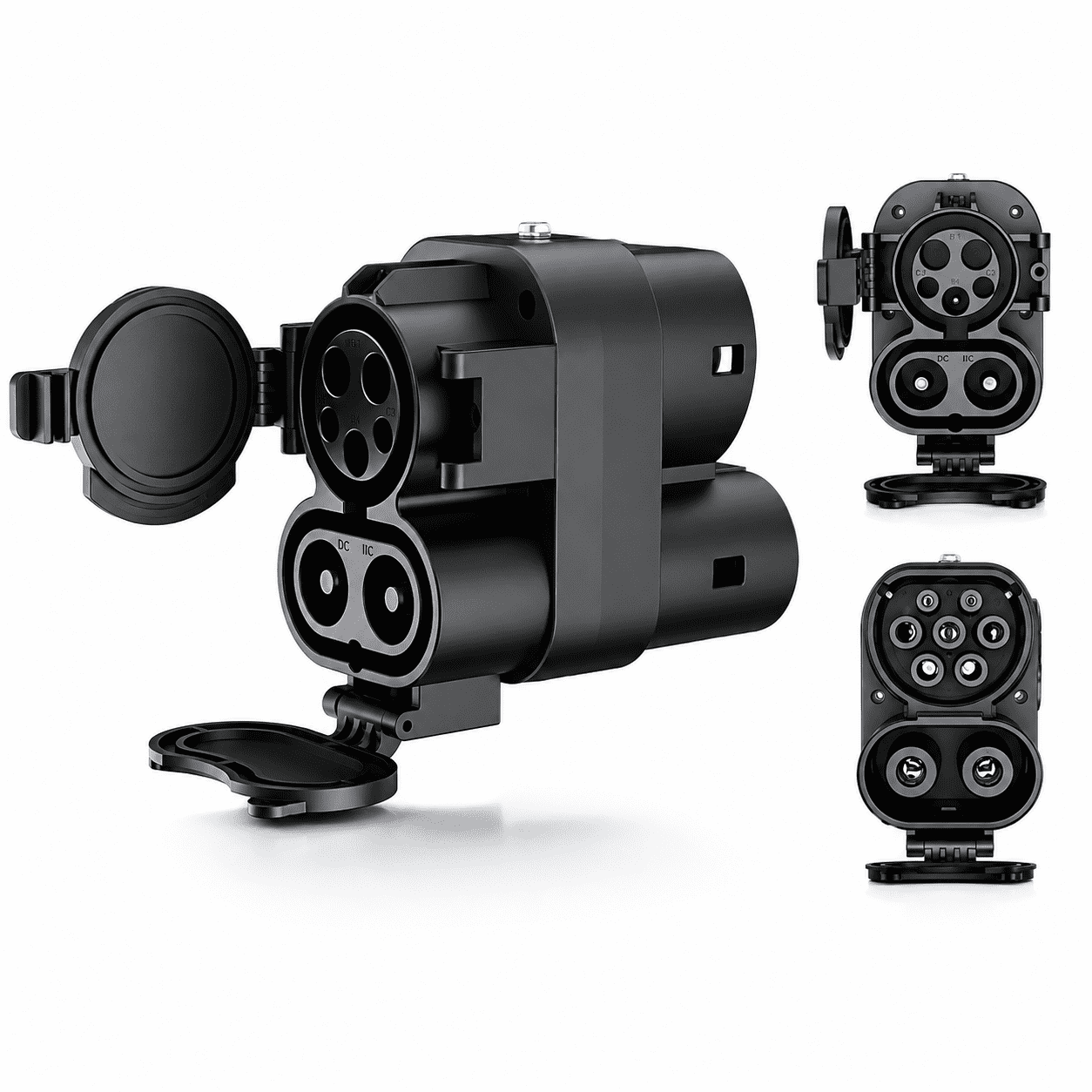

CCS1-CCS2 DC+AC Adapter
Rated Voltage: 1000VDC/250VAC Max
Waterproof Grade:IP54(after mating)
Plastic Shell:Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 0.78kg
Product Dimensions:112.9*69.6*100.22mm
CCS1-GB/T DC Adapter
Rated Voltage: 1000V DCMax
Waterproof Grade: IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature: -30℃~+50℃
Product Net Weight: 1.44kg
Product Size: 282.18*95.48*143.81mm
CCS1-CHAdeMO DC Adapter
Rated Voltage:1000V DCMax
Waterproof Grade:IP54(after mating)
Plastic Shell: Thermoplastic Plastic
Conductor: Copperalloy, Silver Plated Surface
Working Environment Temperature:-30℃~+50℃
Product Net Weight: 1.84kg
Product Size: 89*95.37*150.85mm
